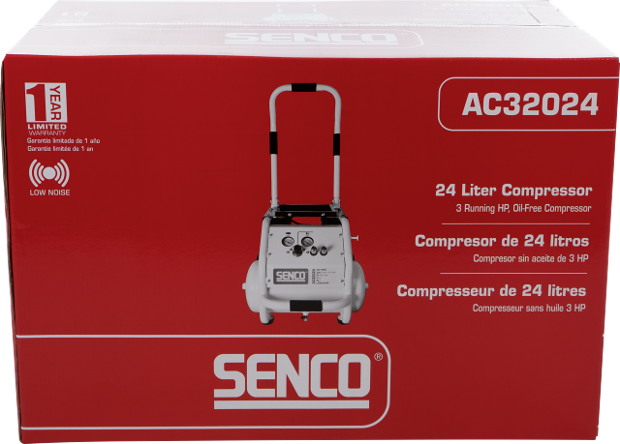

AC32024. low noise compressor

Article number AFN0031

tap image to zoom

Description

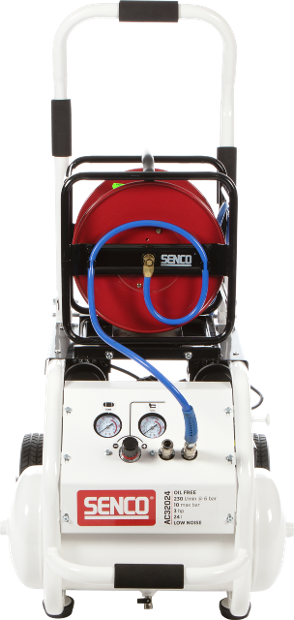

Low noise 10-bar compressor equipped with a whole new 3HP engine - 230V, our latest addition to the Low noise family is a good choice for the heavier applications! It has a 24 liter tank and a platform to mount the SENCO hose reel.

Applications

Paneling, Roofing, Sheathing, Siding, Upholstering, Wood construction

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Article number
AFN0031
GTIN
7331274016972
Type
AC32024

Technical specifications

Oil free
Yes
Low noise
Yes
Frequency
50 Hz
Electrical plug type
Continental
Nominal power
2.2 kW
Sound pressure level
72.0 Lpa
Sound power level
84.0 Lwa
Motor Sce class
S3 Intermittent service
Voltage
230 V
Rotations per minute
1400 RPM
Nominal power
3.0 HP
Tank Capacity
24.0 l
Max output pressure
10.0 bar
Air displacement
320 l/m
Airflow at 6 bar
230 l/min
Number of airoutlets
2
Air outlet socket type
Universal coupler

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
560 x 800 x 535 mm
Includes case
No

Logistical specifications

Net weight
54.0 kg
