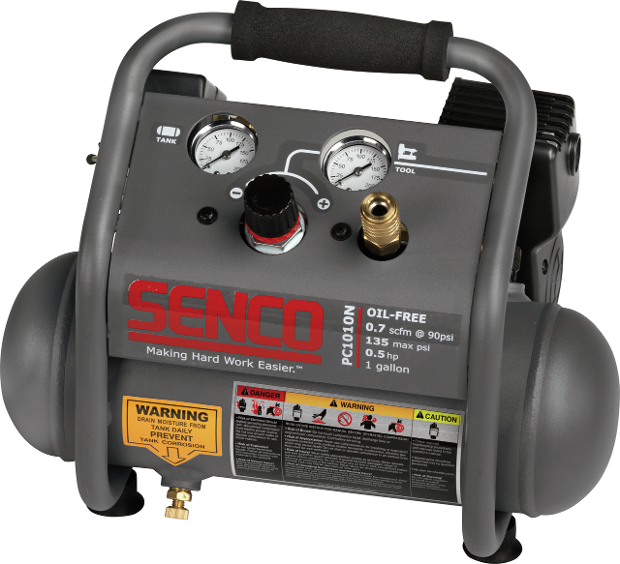

PC1010N, mini compressor
Article number PC1010NEU
tap image to zoom
Description
The PC1010N Finish & Trim air compressor is designed with the professional contractor in mind. The lightweight and compact design ensure easy portability combined with the ultra quiet operation make this the perfect finish and trim unit. The intuitive, rugged design features deliver the performance and function the pros demand. The long life induction motor and oil free pump design eliminate the need for oil or regular maintenance.
Applications
Picture frames, Upholstering, Gardening
Specifications
Identificaton
- Article number
- PC1010NEU
- GTIN
- 0741474137624
- Type
- PC1010
Technical specifications
- Oil free
- Yes
- Low noise
- Yes
- Frequency
- 50 Hz
- Electrical plug type
- Continental
- Nominal power
- 0.375 kW
- Sound pressure level
- 78.0 Lpa
- Sound power level
- 81.0 Lwa
- Voltage
- 230 V
- Rotations per minute
- 2850 RPM
- Nominal power
- 0.5 HP
- Tank Capacity
- 3.8 l
- Max output pressure
- 9.0 bar
- Air displacement
- 34 l/m
- Airflow at 6 bar
- 20 l/min
- Number of airoutlets
- 1
- Air outlet socket type
- Universal coupler
Non-technical specifications
- Warranty
- 1 year
- Dimensions (DxWxH)
- 330 x 360 x 250 mm
- Includes case
- No
Logistical specifications
- Net weight
- 9.7 kg
Downloads
- Manual SENCO PC1010 PDF 16 Mb
- Manual SENCO compressor PC1010N PDF 13 Mb
- Part chart SENCO PC1010N PDF 449 Kb
- Commercial product sheet en PC1010NEU PDF 1 Mb
