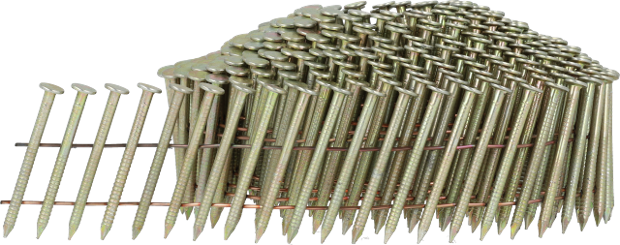

2,1mm conical ring coilnail, galvanized, Sencoted

tap image to zoom

Description

Applications

Packaging, Pallets and crates

Norm

Harmonized standard EN 14592:2008+A1:2012

Request information

Specifications

Technical specifications

Collation angle: 16 °
Wounding type: Conical
Collation type: Wire collated
Wire material: Carbon steel standard tensile

Fastener specifications

Finish: Regular galvanised
Coating: Sencoted
Application environment: Indoor
Type of nail: Coilnails
Nail shank type: Ring shank
Point type: Diamond
Pointangle: 36 °
Pitch min: 6.2 mm
Pitch max: 6.2 mm
Max outerdiamer coil: 100 mm
Nail diameter: 2.1 mm
