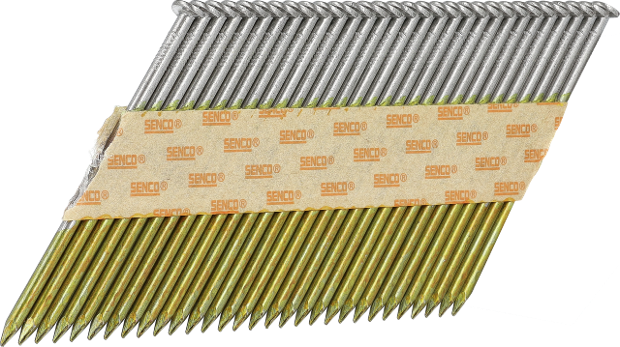

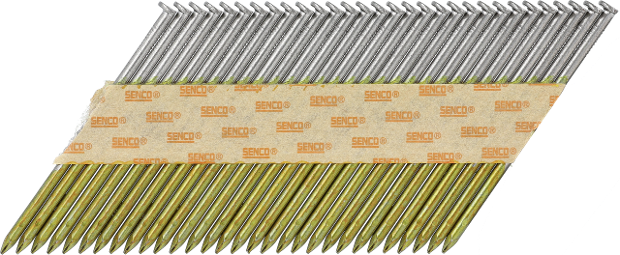

2,87mm smooth stripnail, bright basic, Sencoted

GC smooth stripnail 2,87x55mm

tap image to zoom

Description

2,87mm smooth stripnail, bright basic, Sencoted

Read more Read less

Applications

Framing, Pallets and crates, Subfloor, Trusses

Read more Read less

Norm

Harmonized standard EN 14592:2008+A1:2012

Request information

Specifications

Identificaton

Article number: GC52APBKR
GTIN: 8715274047973

Technical specifications

Collation angle: 34 °
Collation type: Paper collated
Wire material: Carbon steel standard tensile

Fastener specifications

Finish: Bright basic standard tensile
Coating: Sencoted
Application environment: Indoor
Type of nail: CH stripnails
Nail head type: Clipped head
Nail shank type: Smooth shank
Point type: Diamond
Pointangle: 40 °
Nail diameter: 2.87 mm
Amount fasteners on strip/coil: 29 - 31
Nail length: 55.0 mm

CE Specifications

DOP No: GC52APBKR
Harmonized standard: EN 14592:2008+A1:2012
CE fastener type: Round cross-section plain shank nail
Head cross sectional area: 30.0 mm
Coating length: 31.0 mm
Coating type: Coating type 3
Characteristic yield moment: 3054.0 Nmm
Characteristic withdrawal parameter: 2.45 N/mm²
Characteristic head pull through parameter: 27.12 N/mm²
Characteristic tensile strength: 695.0 N/mm²

Non-technical specifications

Package quantity: 2000

Logistical specifications

Net weight: 5.72 kg
