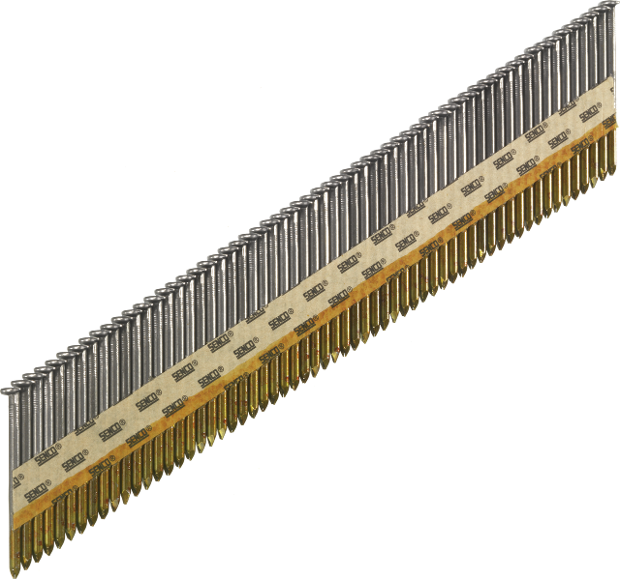

GC smooth stripnail 2,87x70mm

Specifications

Identificaton

Article number

GC56APBKR

GTIN

8715274043791

Technical specifications

Collation angle

34 °

Collation type

Paper collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Bright basic standard tensile

Coating

Sencoted

Application environment

Indoor

Type of nail

CH stripnails

Nail head type

Clipped head

Nail shank type

Smooth shank

Point type

Diamond

Pointangle

40 °

Amount fasteners on strip/coil

29 - 31

Nail length

70.0 mm

Nail diameter

2.87 mm

CE Specifications

CE fastener type

Round cross-section plain shank nail

DOP No

GC56APBKR

Service class

1

Coating type

Coating type 3

Coating length

43.0 mm

Head cross sectional area

30.0 mm

Characteristic yield moment

3054.0 Nmm

Characteristic head pull through parameter

27.12 N/mm²

Characteristic tensile strength

695.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

2.45 N/mm²

Non-technical specifications

Package quantity

2000

Logistical specifications

Net weight

7.09 kg
