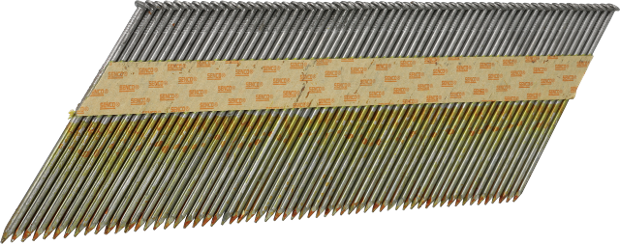

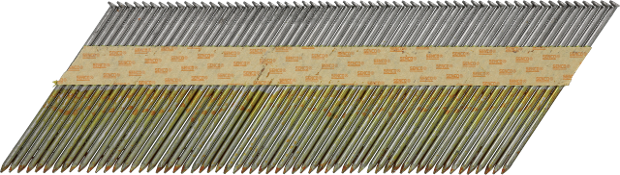

KC smooth stripnail 3,3x100mm

Specifications

Identificaton

Article number

KC60APB

GTIN

4032933209430

Technical specifications

Collation angle

34 °

Collation type

Paper collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Bright basic standard tensile

Coating

Sencoted

Application environment

Indoor

Type of nail

CH stripnails

Nail head type

Clipped head

Nail shank type

Smooth shank

Point type

Diamond

Pointangle

40 °

Nail diameter

3.3 mm

Amount fasteners on strip/coil

59 - 61

Nail length

100.0 mm

CE Specifications

Characteristic head pull through parameter

14.5 N/mm²

CE fastener type

Round cross-section plain shank nail

DOP No

KC60APB

Service class

1

Coating type

Coating type 3

Coating length

65.0 mm

Head cross sectional area

33.0 mm

Characteristic yield moment

4680.0 Nmm

Characteristic tensile strength

621.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

3.1 N/mm²

Non-technical specifications

Package quantity

3000

Logistical specifications

Net weight

20.51 kg
