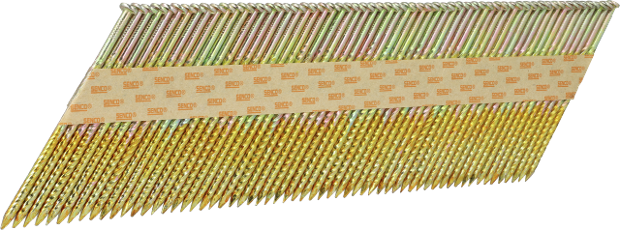

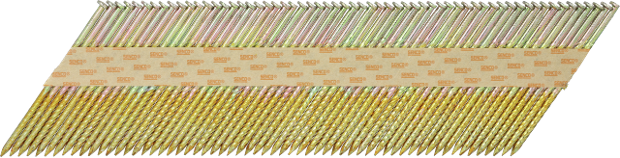

KF screw stripnail 3,3x90mm
tap image to zoom
Description
3,3mm screw stripnail, galvanized 12 Micron, Sencoted
Applications
Framing, Sheathing, Subfloor, Decking, Trusses, Pallets and crates
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identificaton
- Article number
- KF59AXB
- GTIN
- 8715274229546
Technical specifications
- Collation angle
- 34 °
- Collation type
- Paper collated
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Zinc plated 12 micron
- Coating
- Sencoted
- Application environment
- Half indoor
- Type of nail
- CH stripnails
- Nail head type
- Clipped head
- Nail shank type
- Screw shank
- Point type
- Diamond
- Pointangle
- 40 °
- Nail diameter
- 3.3 mm
- Amount fasteners on strip/coil
- 59 - 61
- Nail length
- 90.0 mm
CE Specifications
- Characteristic head pull through parameter
- 14.5 N/mm²
- CE fastener type
- Round cross-section screw shank nail
- DOP No
- KF59AXB
- Protection level in micron
- 12
- Head cross sectional area
- 33.0 mm
- Threaded/profiled length
- 18.0 mm
- Characteristic yield moment
- 4221.0 Nmm
- Characteristic tensile strength
- 621.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 3.1 N/mm²
Non-technical specifications
- Package quantity
- 3000
Logistical specifications
- Net weight
- 18.33 kg
