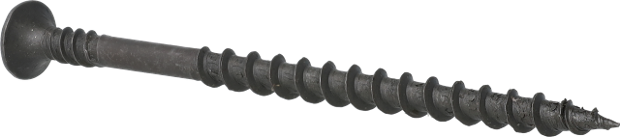

Drywall to wood screw SD25 phosphated 4,5x75mm

tap image to zoom

Description

Drywall to wood screw, phosphated, philips

Read more Read less

Norm

Harmonized standard EN 14566:2008+A1:2009

Request information

Specifications

Identificaton

Article number: 45A75MP
GTIN: 8715274013169

Technical specifications

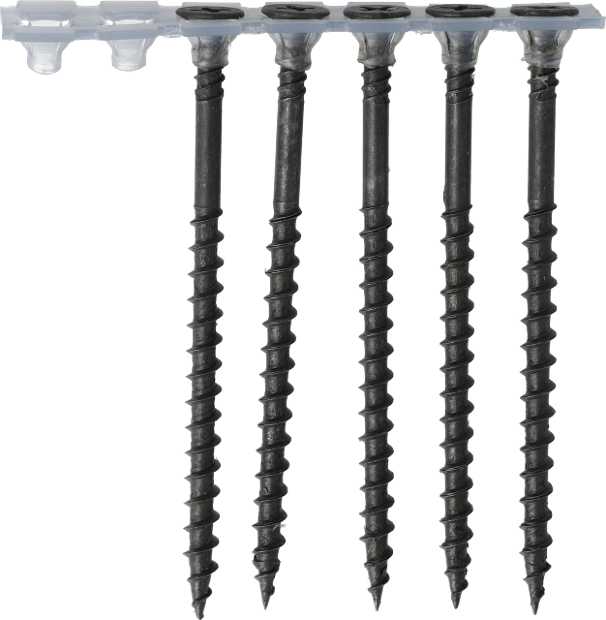

Collation type: Plastic collated
Wire material: Carbon steel standard tensile
Rotations per minute: 3300, 4000, 5000 RPM

Fastener specifications

Finish: Phosphated (grey)
Application environment: Indoor
Point type: Sharp
Pointangle: 23 °
Screw head type: Bugle head
Screw recess: Senco drive 25
Screw thread type: Coarse
Amount fasteners on strip/coil: 50 - 50
Screw length: 75.0 mm
Screw diameter: 4.75 mm

CE Specifications

DOP No: 45A75MP
Service class: 1
Inner threaded diameter: 3.2 mm
Threaded/profiled length: 50.0 mm
Harmonized standard: EN 14566:2008+A1:2009

Non-technical specifications

Package quantity: 1000

Logistical specifications

Net weight: 5.06 kg

Downloads

45A75MP_en_CommercialProductSheet_1.5_1750110662363 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
45A75MP_en_DeclarationOfPerformanceDoP_1.1eu_1750110731548 PDF 58 Kb
45A75MP_en_DeclarationOfPerformanceDoP_1.1uk_1750110736368 PDF 58 Kb
