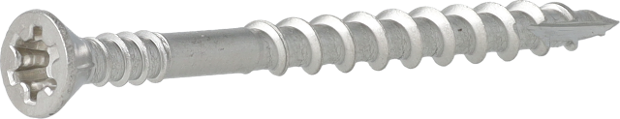

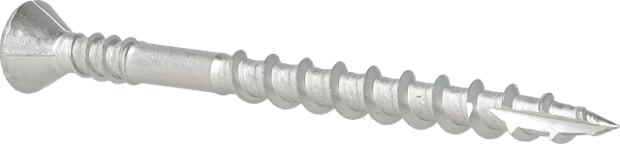

Flooring wood to wood screw 4,5x75mm

Specifications

Identificaton

Article number

45RH75MS

GTIN

8715274053363

Technical specifications

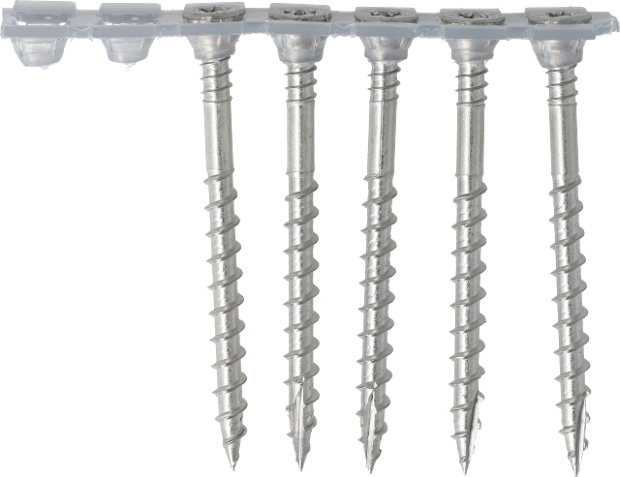

Collation type

Plastic collated

Wire material

Stainless steel AISI 304 (A2)

Rotations per minute

2300, 2500, 3000, 3300 RPM

Fastener specifications

Application environment

Outdoor

Point type

Type 17 cut point

Pointangle

23 °

Screw head type

Small with 4 nibs

Screw recess

Senco drive 25

Screw thread type

2/3 coarse

Amount fasteners on strip/coil

50 - 50

Screw length

75.0 mm

Screw diameter

4.5 mm

CE Specifications

Characteristic head pull through parameter

14.0 N/mm²

DOP No

45RH75MS

Service class

3

Inner threaded diameter

3.05 mm

Threaded/profiled length

50.0 mm

Characteristic yield moment

4300.0 Nmm

Torsional ratio

≥ 1,5

Characteristic torsional resistance

1.88 Nm

Characteristic torsional strength

6.0 Nm

Characteristic tensile capacity

4000.0 N

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

12.5 N/mm²

Non-technical specifications

Package quantity

1000

Logistical specifications

Net weight

5.57 kg
