Specifications
Identificaton
- Article number
- 45RH75MY
- GTIN
- 8715274027937
Technical specifications

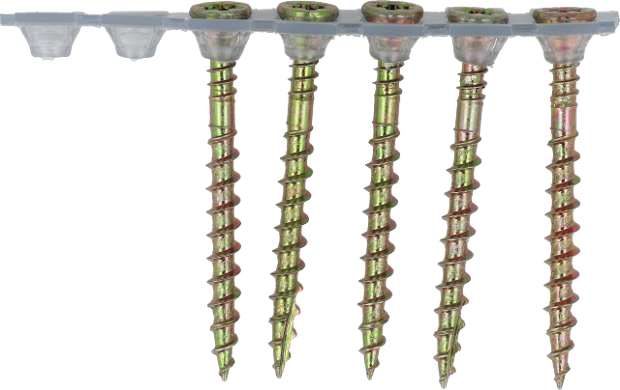

- Collation type
- Plastic collated
- Wire material
- Carbon steel standard tensile
- Rotations per minute
- 2300, 2500, 3000, 3300 RPM
Fastener specifications
- Finish
- Yellow zinc
- Application environment
- Indoor
- Point type
- Type 17 cut point
- Pointangle
- 23 °
- Screw head type
- Small with 4 nibs
- Screw recess
- Senco drive 25
- Screw thread type
- 2/3 coarse
- Amount fasteners on strip/coil
- 50 - 50
- Screw length
- 75.0 mm
- Screw diameter
- 4.5 mm
CE Specifications
- DOP No
- 45RH75MY
- Material notification on CE label
- Non-alloy steel
- Protection level in micron
- 3
- Service class
- 1
- Inner threaded diameter
- 3.05 mm
- Threaded/profiled length
- 50.0 mm
- Characteristic yield moment
- 4300.0 Nmm
- Characteristic head pull through parameter
- 14.0 N/mm²
- Torsional ratio
- ≥ 1,5
- Characteristic torsional resistance
- 1.47 Nm
- Characteristic torsional strength
- 6.0 Nm
- Characteristic tensile capacity
- 7300.0 N
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 12.5 N/mm²
Non-technical specifications
- Package quantity
- 1000
Logistical specifications
- Net weight
- 5.5 kg
