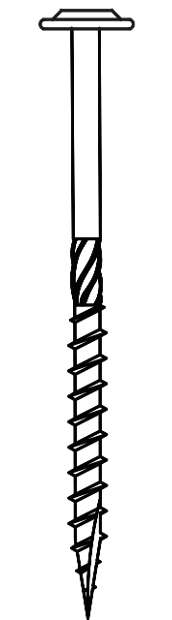

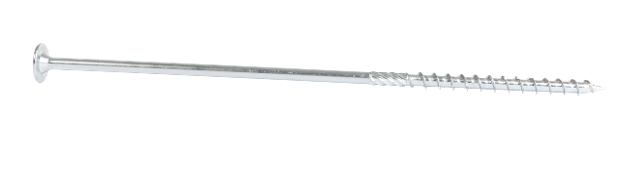

Wood construction screw, flange head, partial thread, clear zinc, torx

Specifications

Identificaton

Article number

HBS-80260-FH40

GTIN

8715274237640

Technical specifications

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Clear zinc

Application environment

Indoor

Point type

Type 17 cut point

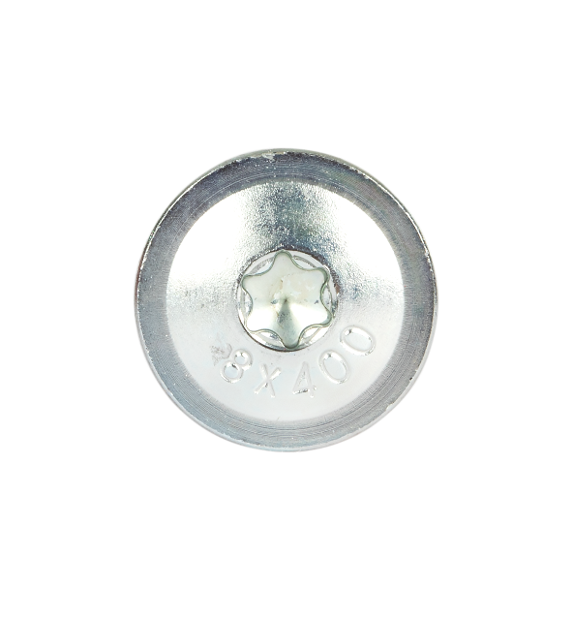

Screw head type

Flange head

Screw recess

Torx 40

Screw thread type

Partly threaded with shank ribs

Screw length

260.0 mm

Screw diameter

8.0 mm

CE Specifications

Characteristic head pull through parameter

14.0 N/mm²

CE fastener type

Wood construction screw

DOP No

HBS-80260-FH40

Material notification on CE label

Carbon Steel

Protection level in micron

≤5

Service class

2

Threaded/profiled length

80.0 mm

Characteristic yield moment

20.0 Nmm

Characteristic torsional resistance

1.5 Nm

Characteristic torsional strength

20.0 Nm

Characteristic withdrawal parameter

11.0 N/mm²

Non-technical specifications

Package quantity

50

Logistical specifications

Net weight

2.97 kg
