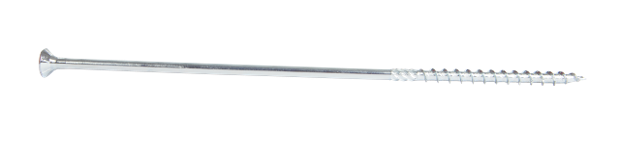

Wood construction screw, countersunk head, partial thread, clear zinc, torx

Specifications

Identificaton

Article number

HBS-80360-CH40

GTIN

8715274244945

Technical specifications

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Clear zinc

Application environment

Indoor

Point type

Type 17 cut point

Screw head type

Countersunk with nibs

Screw recess

Torx 40

Screw thread type

Partly threaded with shank ribs

Screw length

360.0 mm

Screw diameter

8.0 mm

CE Specifications

Characteristic head pull through parameter

14.0 N/mm²

CE fastener type

Wood construction screw

DOP No

HBS-80360-CH40

Material notification on CE label

Carbon Steel

Protection level in micron

≤5

Service class

2

Threaded/profiled length

80.0 mm

Characteristic yield moment

20.0 Nmm

Characteristic torsional resistance

1.5 Nm

Characteristic torsional strength

20.0 Nm

Characteristic withdrawal parameter

11.0 N/mm²

Non-technical specifications

Package quantity

50
