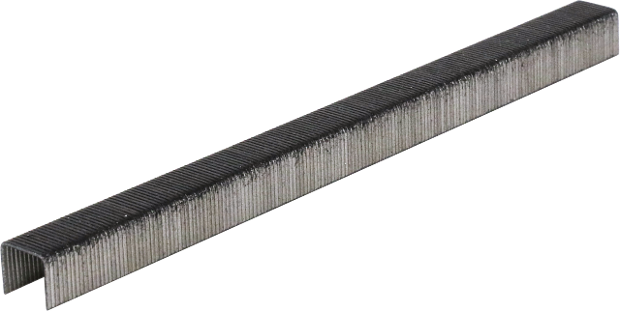

C staple 8mm, RAL9017

tap image to zoom

Description

C staple AIS304, RAL9017

Read more Read less

Applications

Furnitures, Upholstering, Insulation boards, Felt, Casing, Shoes

Read more Read less

Request information

Specifications

Identificaton

Article number: C05BGC9017
GTIN: 8715274036595

Technical specifications

Collation angle: 0 °
Collation type: Glue collated
Wire material: Stainless steel AISI 304 (A2)
Gauge: 22

Fastener specifications

Coating: Painted
Application environment: Outdoor
Point type: Chisel
Pointangle: 90 °
Staple type: Light wire staple
Staple thickness: 0.54 mm
Staple wire size: 0.68 mm
Staple crown width: 9.5 mm
Staple inside width: 7.7 mm
Staple serie: C staple
Amount fasteners on strip/coil: 178 - 180
Staple length: 8.0 mm

Non-technical specifications

Package quantity: 28000

Logistical specifications

Net weight: 5.0 kg

Downloads

C05BGC9017_en_CommercialProductSheet_1.4_1752238772829 PDF 1 Mb
