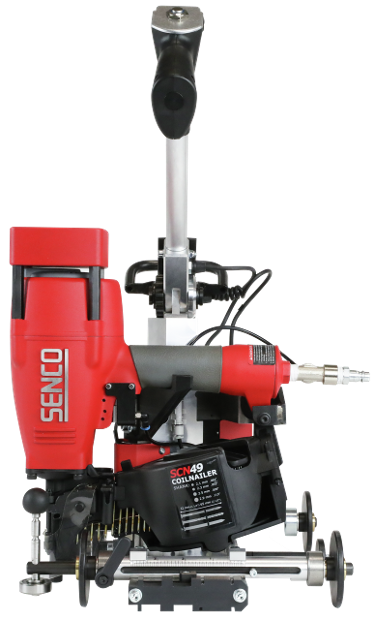

SENCO Smart BoardMaster SCN49XP, coilnailer
Article number EJ03800
tap image to zoom
Description
The SENCO Smart BoardMaster SCN49XP coilnailer is designed for the toughest industrial applications. In combination with the outstanding handtool SCN49XP, a fast cycle time for short nail spacing applications can be achieved.
Features & Benefits

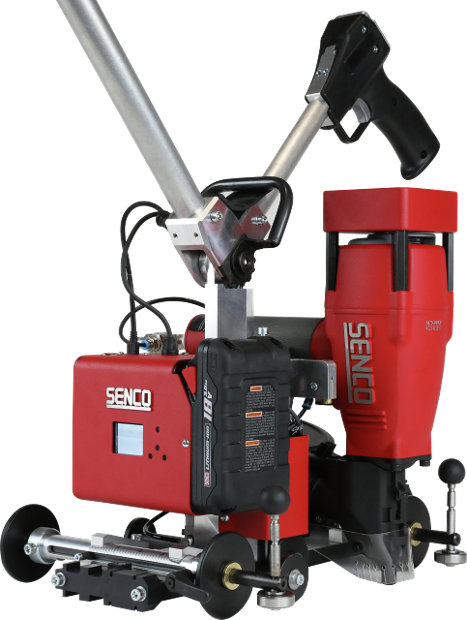

- Telescopic arm
- Selectable Trigger

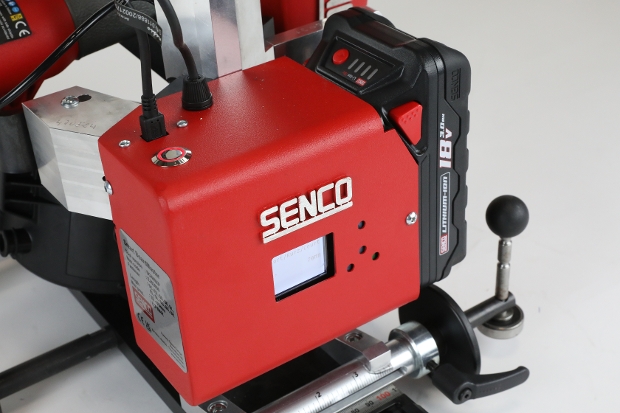

- Programmable PLC
Specifications
Identificaton
- Serie
- XtremePro
- Article number
- EJ03800
- GTIN
- 8715274245249
- Type
- SCN49XP
Technical specifications
- Collation angle
- 16 °
- Wounding type
- Flat
- Oil free
- No
- Operating temperature
- -18 - 49 °C
- Collation type
- Wire collated
- Alternative collation type
- Plastic collated 16mm
- Firing mode
- Automatic
- Magazine capacity
- 200
- Shots / second
- 5
- Air inlet size
- 3/8" female
- Air consumption at 60 shots/minute
- 111.0 l/m
- Operating pressure
- 5 - 8.3 bar
- Battery type
- Li-Ion
- Battery voltage
- 18 V
- Battery ampere rating
- 1.5 Ah
- Battery power
- 27.0 W
- Recharge time 80%
- 15 min
- Recharge time 100%
- 45 min
- Shots per charge
- 3000
- Sound pressure level
- 86.0 Lpa
- Sound power level
- 96.0 Lwa
- Vibration level
- 3.09 m/s2
Fastener specifications
- Type of nail
- Coilnails
- Smooth shank type
- Smooth shank
- Smooth shank nail length
- 32 - 65 mm
- Smooth shank nail diameter
- 2,1 - 2,87 mm
- Ring shank type
- Ring shank
- Ring shank nail length
- 32 - 60 mm
- Ring shank nail diameter
- 2,1 - 2,5 mm
- Screw shank type
- Screw shank
- Screw shank nail length
- 50 - 65 mm
- Screw shank nail diameter
- 2,5 - 2,5 mm
- Pitch min
- 8.5 mm
- Pitch max
- 8.5 mm
- Max outerdiamer coil
- 120 mm
Non-technical specifications
- Warranty
- 5 years
- Dimensions (DxWxH)
- 314 x 1283 x 1173 mm
Logistical specifications
- Net weight
- 10.3 kg
