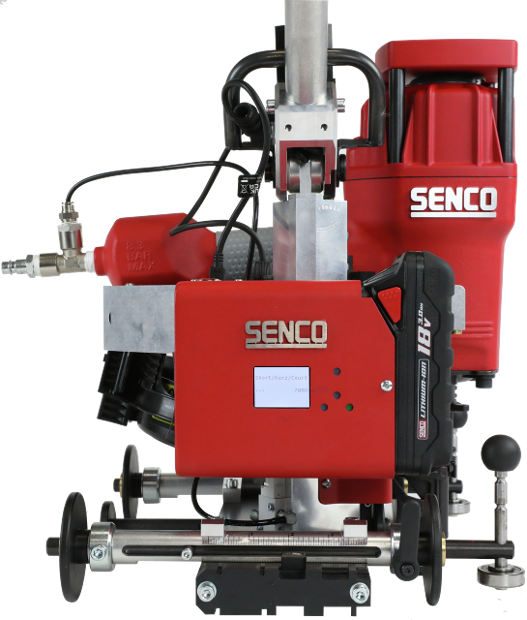

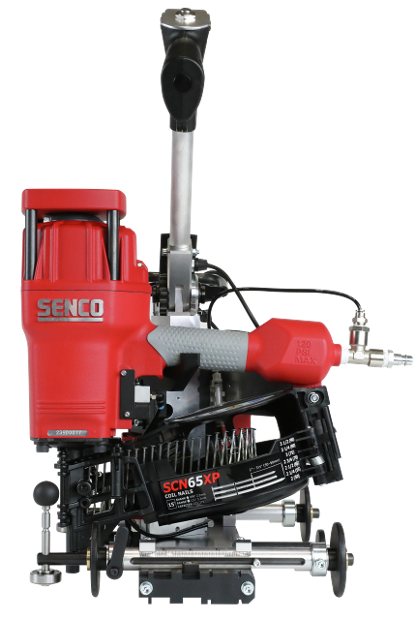

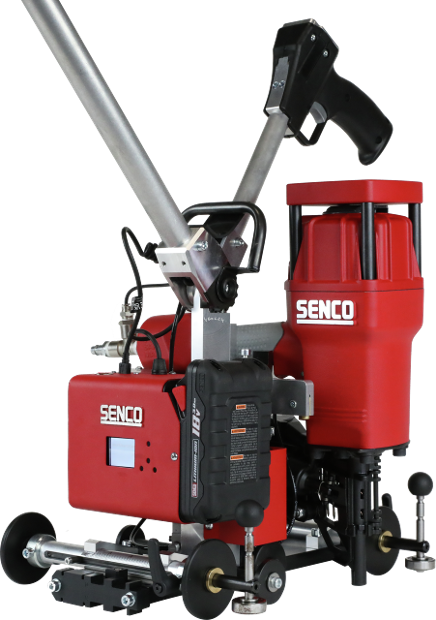

Smart BoardMaster SCN65XP, coilnailer

Article number EJ04300

tap image to zoom

Description

The new Smart BoardMaster SCN49XP coilnailer is designed for the toughest industrial applications. In combination with the outstanding handtool SCN49XP, a fast cycle time for short nail spacing applications can be achieved.

Features & Benefits

  • Telescopic arm
  • Selectable Trigger
  • Programmable PLC

Specifications

Identificaton

Article number
EJ04300
GTIN
8715274245256
Type
SCN65XP

Technical specifications

Collation angle
16 °
Wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Alternative collation type
Plastic collated 16mm
Firing mode
Remote trigger
Magazine capacity
275
Shots / second
3
Air inlet size
3/8" female
Air consumption at 60 shots/minute
270.2 l/m
Operating pressure
4.8 - 8.3 bar
Battery type
Li-Ion
Battery voltage
18 V
Battery ampere rating
1.5 Ah
Battery power
27.0 W
Recharge time 80%
15 min
Recharge time 100%
45 min
Shots per charge
500
Sound pressure level
93.0 Lpa
Sound power level
102.0 Lwa
Vibration level
3.68 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
32 - 65 mm
Smooth shank nail diameter
2,1 - 2,87 mm
Ring shank type
Ring shank
Ring shank nail length
32 - 65 mm
Ring shank nail diameter
2,1 - 2,5 mm
Screw shank type
Screw shank
Screw shank nail length
32 - 65 mm
Screw shank nail diameter
2,5 - 2,5 mm
Pitch min
8.5 mm
Pitch max
8.5 mm
Max outerdiamer coil
120 mm

Non-technical specifications

Dimensions (DxWxH)
327 x 1283 x 1173 mm

Logistical specifications

Net weight
11.4 kg
