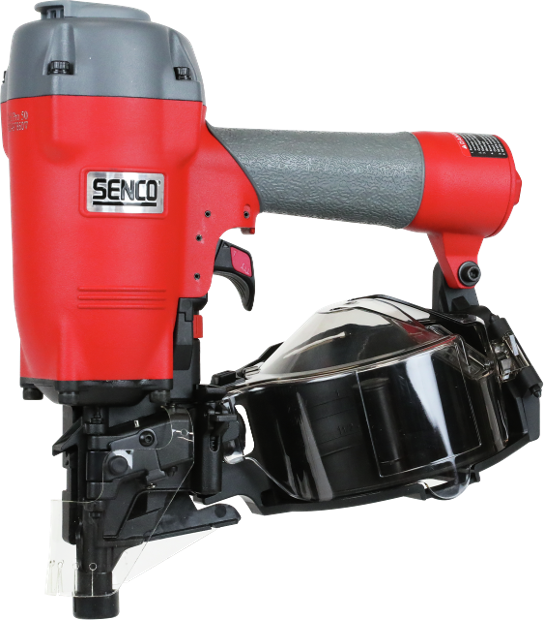

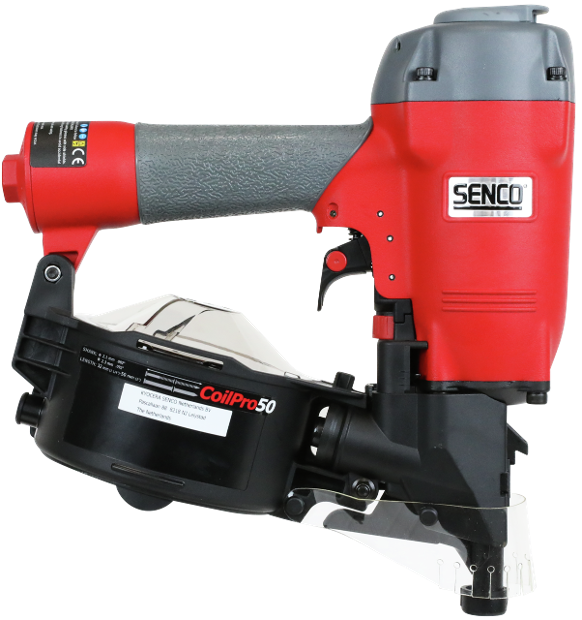

CoilPro50 Coilnailer

tap image to zoom

Description

The pneumatic CoilPro50 coilnailer is one of the lightest on the market (2kg) and drives coilnails ranging in length from 25 to 50mm . This Pro Serie coilnailer drives a broader range of nail lengths due to the adjustable height tray which allows quick change of nail lengths. The high nail capacity of the CoilPro50 minimizes production interruption. The magazine canister turns way up for easy reload in seconds. Available with or without blow model case.

Request information Request information

Specifications

Identificaton

Serie
Pro
Article number
4U2001N
GTIN
8718035007032
Type
CoilPro50

Technical specifications

Collation angle
16 °
Wounding type
Conical
Alternative wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Alternative collation type
Plastic collated 16mm
Firing mode
Selectable
Magazine capacity
375
Shots / second
3
Air inlet size
3/8" female
Air consumption at 60 shots/minute
83.2 l/m
Operating pressure
5 - 8 bar
Sound pressure level
87.0 Lpa
Sound power level
100.0 Lwa
Vibration level
4.98 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
32 - 50 mm
Smooth shank nail diameter
2,1 - 2,5 mm
Ring shank type
Ring shank
Ring shank nail length
32 - 50 mm
Ring shank nail diameter
2,1 - 2,1 mm
Pitch min
7.0 mm
Pitch max
7.0 mm
Max outerdiamer coil
118 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
128 x 305 x 285 mm
Includes case
No

Logistical specifications

Net weight
2.0 kg
