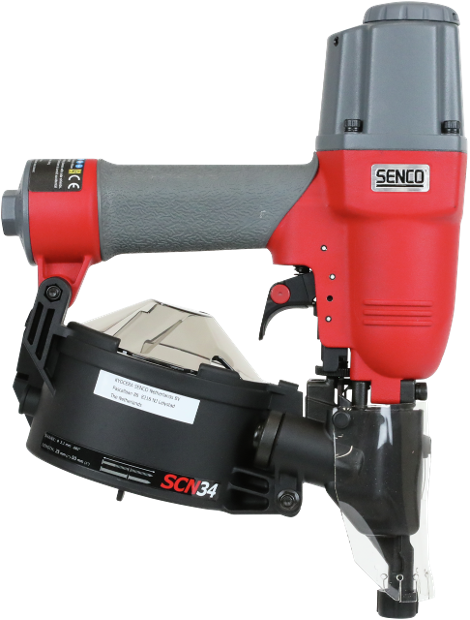

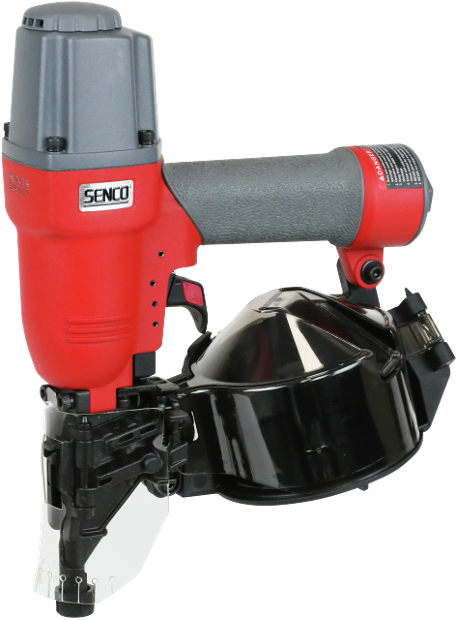

SCN34, coilnailer, dual

Article number SCN34

tap image to zoom

Description

The SCN34 lightweight and compact design allows it to be highly manoeuvrable and driving coil nails from 25mm to 50mm.

Features & Benefits

  • Tool-free depth-of-drive
  • 360° Adjustable Exhaust
  • Comfort grip
  • Selectable Trigger

Applications

Pallets and crates, Fencing, Siding

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Serie
Pro
Article number
SCN34
GTIN
8715274012261
Type
SCN34

Technical specifications

Collation angle
16 °
Wounding type
Conical
Alternative wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Alternative collation type
Plastic collated 9mm
Firing mode
Selectable
Magazine capacity
400
Shots / second
4
Air inlet size
3/8" female
Air consumption at 60 shots/minute
43.8 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
83.1 Lpa
Sound power level
94.6 Lwa
Vibration level
3.81 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
25 - 50 mm
Smooth shank nail diameter
1,6 - 2,1 mm
Ring shank type
Ring shank
Ring shank nail length
25 - 50 mm
Ring shank nail diameter
1,6 - 1,6 mm
Pitch min
6.0 mm
Pitch max
6.0 mm
Max outerdiamer coil
100 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
108 x 260 x 302 mm

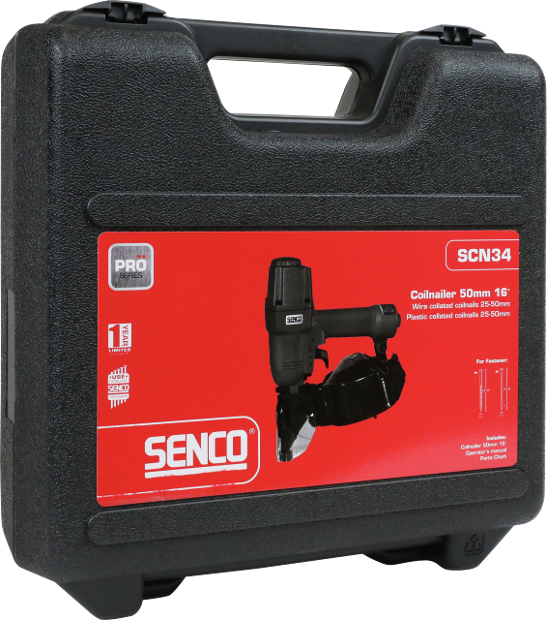

Includes case
Yes

Logistical specifications

Net weight
1.55 kg
