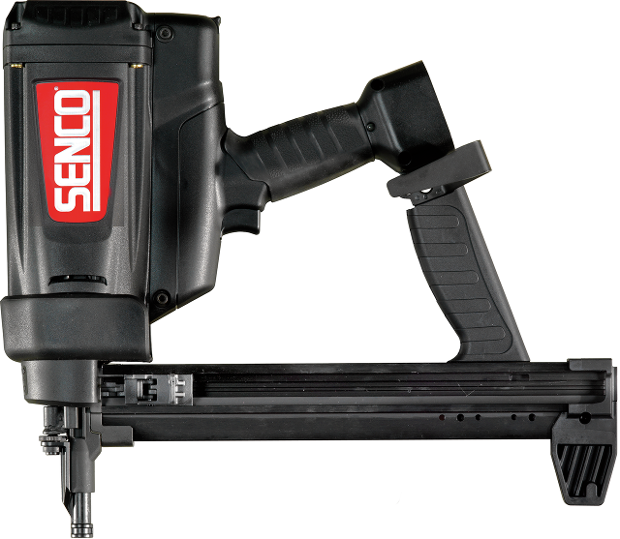

SGP40L, concrete nailer
Article number 5H9211N-L
tap image to zoom
Description
The SGP40L gas-powered fastening system tackles the toughest concrete and steel applications. It’s easier, safer, and 5 times faster than powder-actuated tools. Backed by a two year warranty, the SGP40L has the power and durability you’d expect from a SENCO product.
Applications
Drywall track fastening, Furring, Hat channel, Ceiling grid to concrete, Concrete forms
Specifications
Identificaton
- Serie
- Gas Technology
- Article number
- 5H9211N-L
- GTIN
- 8715274169606
- Type
- SGP40L
Technical specifications
- Collation angle
- 0 °
- Fuel cell weight
- 40 g
- Operating temperature
- -7 - 49 °C
- Collation type
- Plastic collated
- Firing mode
- Restrictive
- Fastener driving power
- 90 J
- Magazine capacity
- 42
- Frequency
- 50 Hz
- Electrical plug type
- Continental
- Battery type
- Ni-Mh
- Battery voltage
- 6 V
- Battery ampere rating
- 1.65 Ah
- Battery power
- 9.9 W
- Recharge time 100%
- 120 min
- Shots per charge
- 4500
- Number of batteries
- 2
- Length fuel cell
- 165 mm
- Shots per fuel cell
- 1200
- Sound pressure level
- 96.6 Lpa
- Sound power level
- 99.2 Lwa
- Vibration level
- 3.65 m/s2
- Voltage
- 230 V
Fastener specifications
- Type of nail
- Steel & concrete pins
- Head diameter
- 6,1 - 6,3 mm
- Smooth shank type
- Smooth shank
- Smooth shank nail length
- 15 - 40 mm
- Smooth shank nail diameter
- 2,7 - 3,02 mm
- Stepped shank type
- Stepped shank
- Stepped shank nail length
- 15 - 40 mm
- Stepped shank nail diameter
- 2,7 - 3,02 mm
Non-technical specifications
- Warranty
- 2 years
- Dimensions (DxWxH)
- 139 x 459 x 340 mm
- Includes case
- Yes
Logistical specifications
- Net weight
- 3.6 kg
Related Fasteners
Downloads
- Manual SENCO SGP40S PDF 26 Mb
- Part chart SENCO gas concrete nailer SGP40S PDF 2 Mb
- 5H9211N-L_en_CommercialProductSheet_1702374307605 PDF 2 Mb
