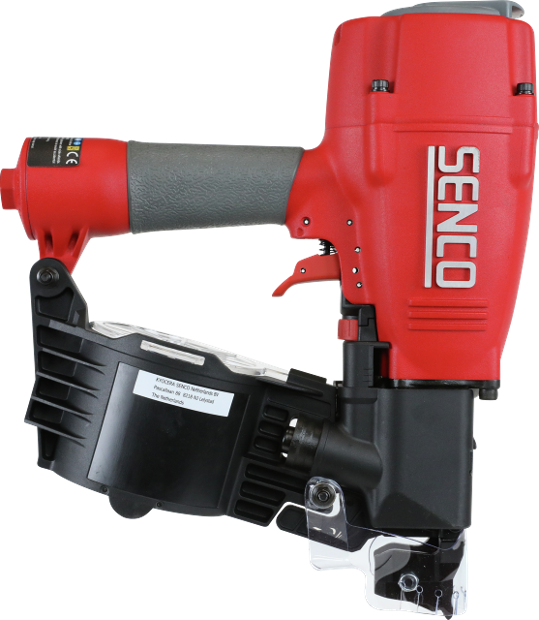

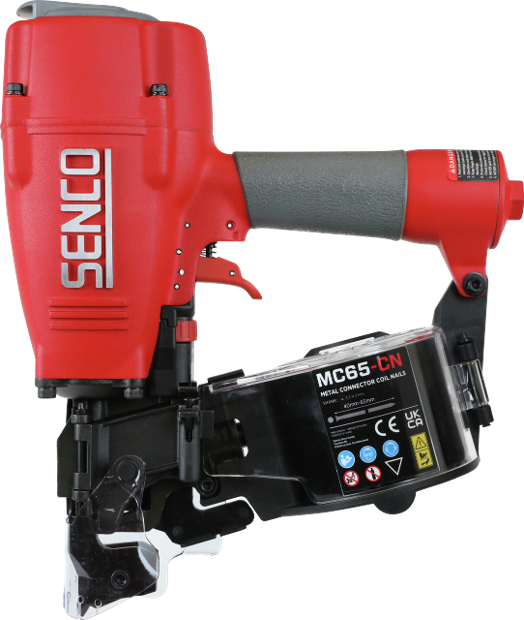

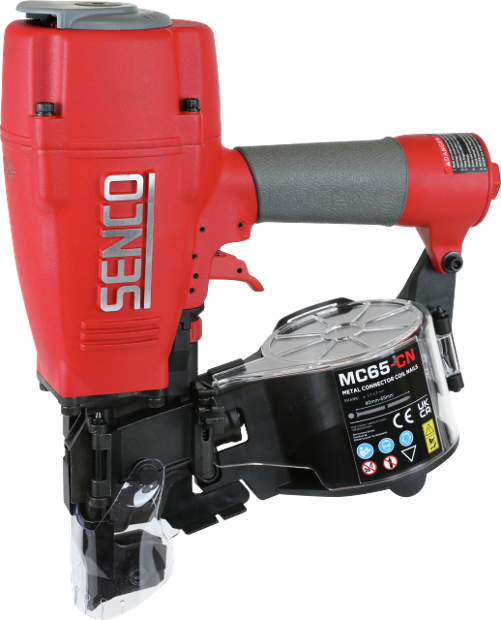

MC65-CN metal connector Coil nailer

tap image to zoom

Description

The MC65-CN is a pneumatic compact metal connector nailer that can drive nails ranging in length between 38 and 65mm. Its innovative nosepiece design provides accurate nail placement into pre-punched metal connector holes. This ProSerie metal connector nailer is constructed with durable, high-quality materials while still being lightweighted and ergonomically balanced. The tool has the power to drive into the toughest substrates, including engineered lumber.

  • Tool-free depth-of-drive
  • Anti slip grip
  • 360° Adjustable Exhaust
  • Magnesium body
  • Long Nose design

Applications

Anchors, Joist hangers

Request information Request information

Specifications

Identificaton

Serie
Pro
Article number
16VS2001N
GTIN
8715274254425
Type
MC65-CN

Technical specifications

Collation angle
16 °
Oil free
No
Operating temperature
-7 - 49 °C
Collation type
Plastic collated
Firing mode
Single shot
Fastener driving power
75 J
Magazine capacity
100
Air inlet size
3/8" female
Air consumption at 60 shots/minute
96.0 l/m
Operating pressure
5 - 8 bar
Sound pressure level
93.7 Lpa
Sound power level
101.0 Lwa

Fastener specifications

Type of nail
Coilnails
Ring shank type
Ring shank
Ring shank nail length
40 - 65 mm
Ring shank nail diameter
3.3 - 4.3 mm

Non-technical specifications

Warranty
1 year
Package contents
Manual, Parts Chart
Dimensions (DxWxH)
100 x 278 x 317 mm
Includes case
No

Logistical specifications

Gross weight
3.375 kg
Net weight
2.3 kg
