MC60-34, metal connector nailer

tap image to zoom

Description

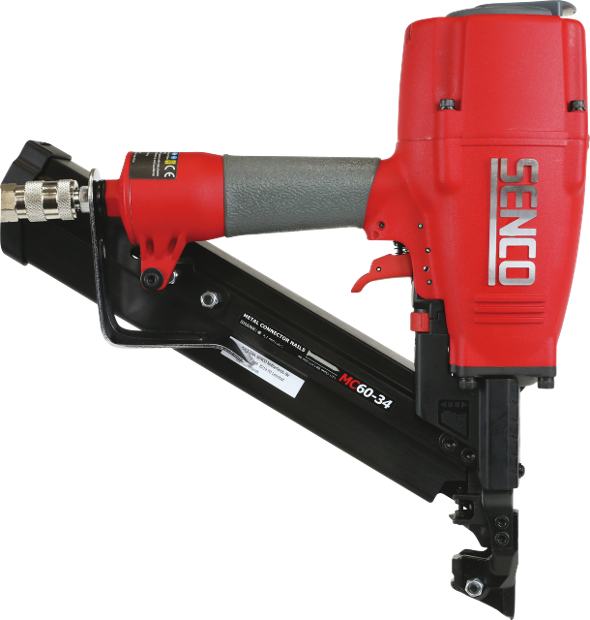

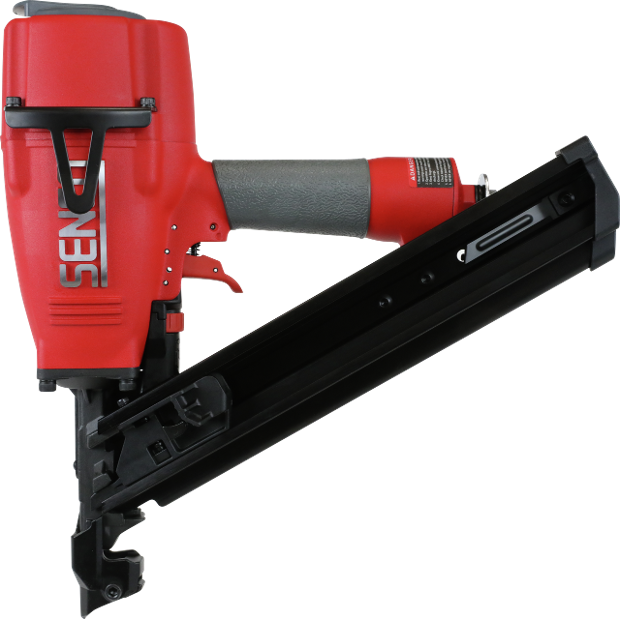

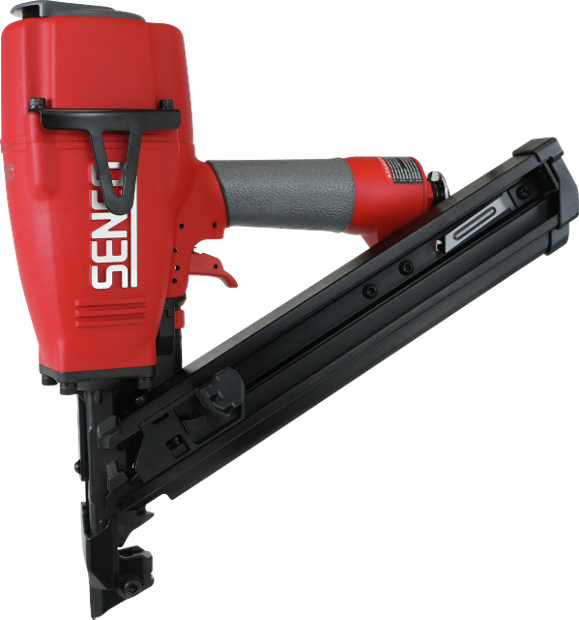

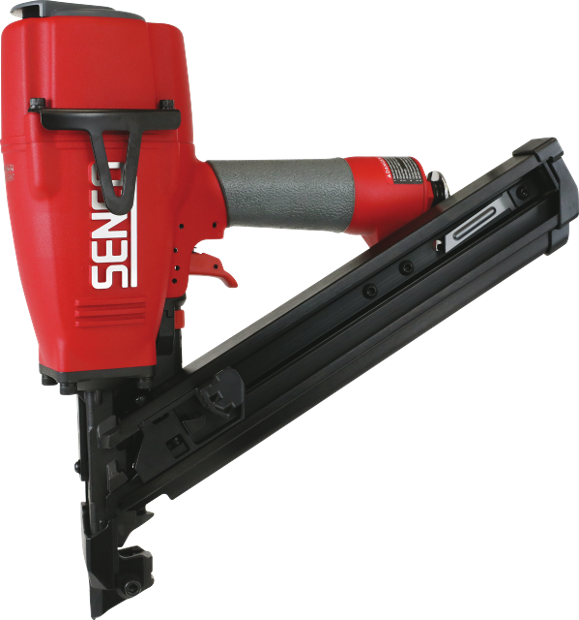

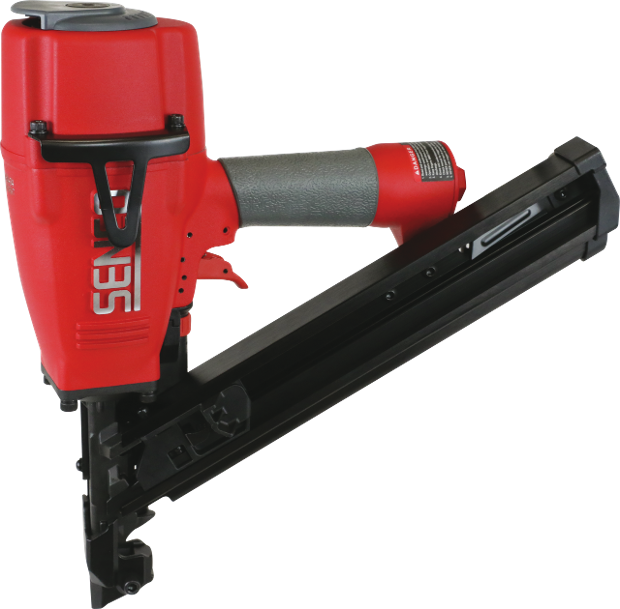

The MC60-34 is a pneumatic compact metal connector nailer that can drive nails ranging in length between 38 and 64mm. Its innovative nosepiece design provides accurate nail placement into pre-punched metal connector holes. This ProSerie metal connector nailer is constructed with durable, high-quality materials while still being lightweighted and ergonomically balanced. The tool has the power to drive into the toughest substrates, including engineered lumber.

  • Dry fire lockout
  • Tool-free depth-of-drive
  • 360° Adjustable Exhaust
  • Side steel wearplates

Applications

Joist hangers, Rafter joints, Anchors, Framing

Request information Request information

Specifications

Identificaton

Serie
Pro
Article number
6K2001N
GTIN
0741474115912
Type
MC60-34

Technical specifications

Collation angle
34 °
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Plastic collated
Alternative collation type
Paper collated
Firing mode
Restrictive
Magazine capacity
20
Air inlet size
3/8" female
Air consumption at 60 shots/minute
117.5 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
90.0 Lpa
Sound power level
103.0 Lwa
Vibration level
3.56 m/s2

Fastener specifications

Type of nail
Metal connector stripnails
Ring shank type
Ring shank
Ring shank nail length
38 - 64 mm
Ring shank nail diameter
3.3 - 4.3 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
110 x 350 x 359 mm
Includes case
No

Logistical specifications

Net weight
2.68 kg
