GT90CH, CH framing nailer

Article number 5F2001N

tap image to zoom

Description

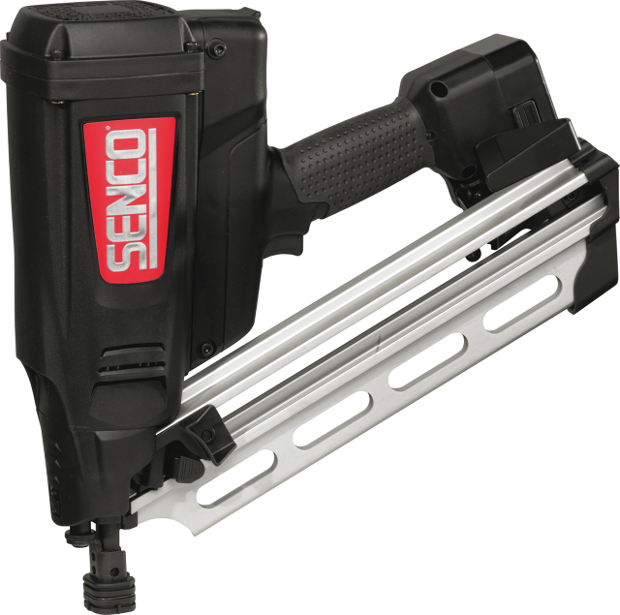

The GT90CH cordless clipped head gas framer combines the convenience of a cordless tool with the power and utility of a pneumatic framing nailer. This well-balanced framing nailer has the power to complete all of your framing and sheathing job requirements. Perfect for framing crews, re-modelers, punch-out or service crews who need to un-tether from the hassle of a hose and compressor. Built with components that ensure all day durability and reliability, the GT90CH comes with 2 Ni-MH batteries, battery charger, service tools, durable plastic case, and features a 2-year limited warranty.

Features & Benefits

  • Rafter hook
  • Tool-free depth-of-drive
  • Dry fire lockout
  • Aggressive toenail safety
  • LED Power Gauge
  • Comfort grip

Applications

Framing, Subfloor, Sheathing, Decking, Siding, Fencing, Pallets and crates

Specifications

Identificaton

Serie
Gas Technology
Article number
5F2001N
GTIN
0741474062346
Type
GT90CH

Technical specifications

Collation angle
34 °
Fuel cell weight
40 g
Collation type
Paper collated
Firing mode
Restrictive
Fastener driving power
79 J
Magazine capacity
70
Frequency
50 Hz
Electrical plug type
Continental
Battery type
Ni-Mh
Battery voltage
6 V
Battery ampere rating
1.65 Ah
Battery power
9.9 W
Recharge time 100%
120 min
Shots per charge
3300
Number of batteries
2
Length fuel cell
165 mm
Shots per fuel cell
1400
Sound pressure level
87.0 Lpa
Sound power level
97.0 Lwa
Vibration level
3.1 m/s2
Voltage
230 V

Fastener specifications

Type of nail
CH stripnails
Smooth shank type
Smooth shank
Smooth shank nail length
50 - 90 mm
Smooth shank nail diameter
2,87 - 3,3 mm
Ring shank type
Ring shank
Ring shank nail length
50 - 75 mm
Ring shank nail diameter
2,87 - 2,87 mm

Non-technical specifications

Warranty
2 years
Dimensions (DxWxH)
107 x 372 x 376 mm
Includes case
Yes

Logistical specifications

Net weight
3.58 kg
