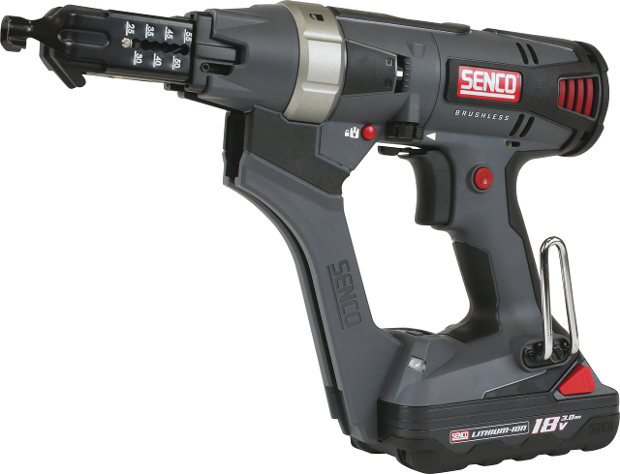

DS522-18V EU Heavy Duty 55mm

Article number 10B2001N

tap image to zoom

Description

Powered by an efficient brushless motor, this high torque auto-feed screwdriver includes two extended life 3.0 Ah batteries, a variable speed selector for heavy steel, a quick release feed system with our patented corner fit technology. The DS522-18V also features feed on return - the next screw is aligned with the bit for better line of sight and easier, more accurate screw placement.

Features & Benefits

  • Patented corner-fit feed system
  • Detachable feed system to expose bit for quick reversing
  • Selectable 2500/1600 RPM high torque brushless motor
  • Precise depth of drive adjustment with depth lock
  • Quick slide button bit change
  • Variable speed trigger with lock and reverse

Applications

Drywall (to wood or steel studs), Cement board, Underlayment, Sheating to steel, Metal framing, Structural steel decking, Rigid foam insulation

Specifications

Technical specifications

Length
372 mm
Width
86 mm
Height
243 mm
Min. length fastener 1
25 mm
Max. length fastener 1
55 mm
Magazine capacity
50 pieces
Includes case
True
Voltage (ac)
230 V
Frequency
50 Hz
Electrical plug type
Continental
Rotations per minute (RPM)
2500 RPM
Battery type
Li-Ion
Battery voltage
18 V
Battery ampere rating
3 Ah
Battery power
54 W
Recharge time 80%
15 minutes
Recharge time 100%
45 minutes
Shots per charge
2000
Number of batteries in kit
2 pieces
Bit length
174 mm
Torque
8 Nm
Fastener type
Collated Screws
Fastener length 1
25-55 mm
Screw diameter
3.5-5.5 mm

Non-technical specifications

Warranty
5 year(s)
GTIN (Base unit of measure)
8715274245188
Net weight
2.48
Net weight unit
kg
