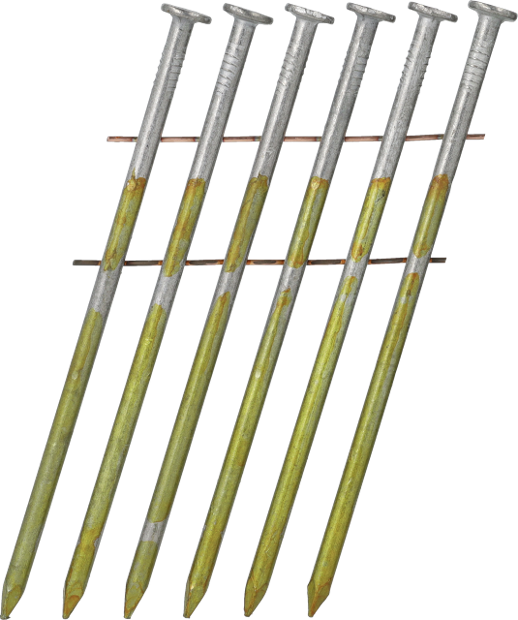

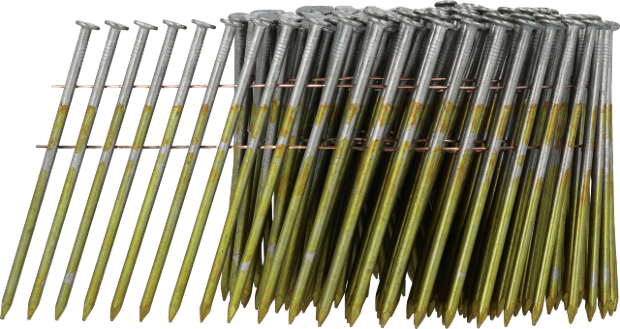

Senco cn flat hdg dp. sm. senc. 3,1x90mm

Specifications

Identificaton

Article number

HD29ASBFR

GTIN

8715274029573

Technical specifications

Collation angle

16 °

Wounding type

Flat

Collation type

Wire collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Hot-Dipped galvanised 3

Coating

Sencoted

Application environment

Outdoor

Type of nail

Coilnails

Nail shank type

Smooth shank

Point type

Diamond

Pointangle

40 °

Pitch min

8.4 mm

Pitch max

8.4 mm

Max outerdiamer coil

122 mm

Nail diameter

3.1 mm

Amount fasteners on strip/coil

200 - 200

Nail length

90.0 mm

CE Specifications

Characteristic head pull through parameter

22.45 N/mm²

CE fastener type

Round cross-section plain shank nail

DOP No

HD29ASBFR

Protection level in micron

55

Service class

3

Coating type

Coating type 3

Coating length

61.5 mm

Head cross sectional area

37.0 mm

Characteristic yield moment

2640.0 Nmm

Characteristic tensile strength

620.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

2.9 N/mm²

Non-technical specifications

Package quantity

900

Logistical specifications

Net weight

5.02 kg
