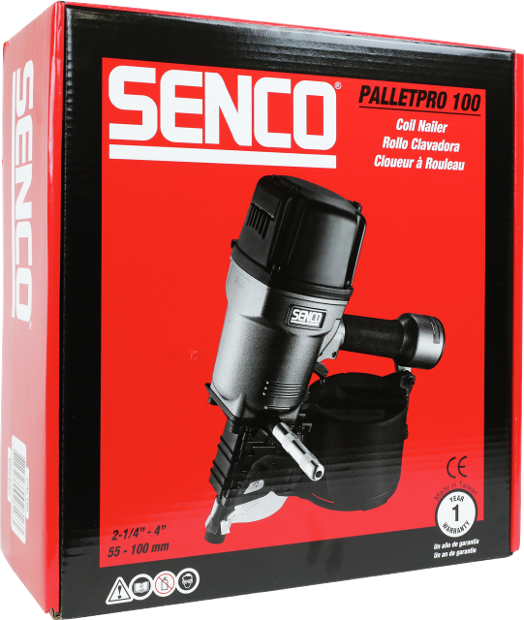

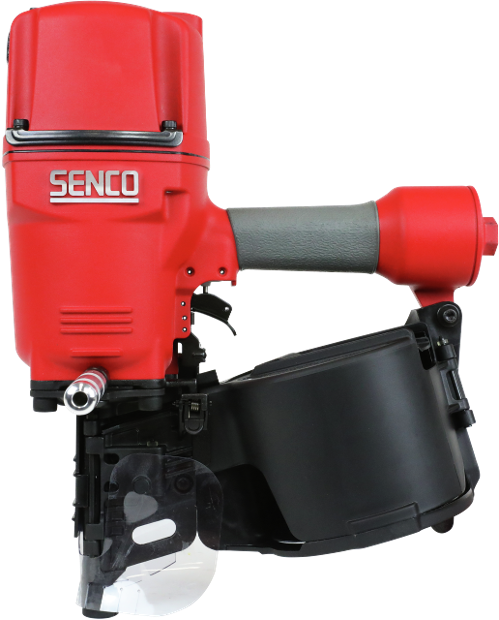

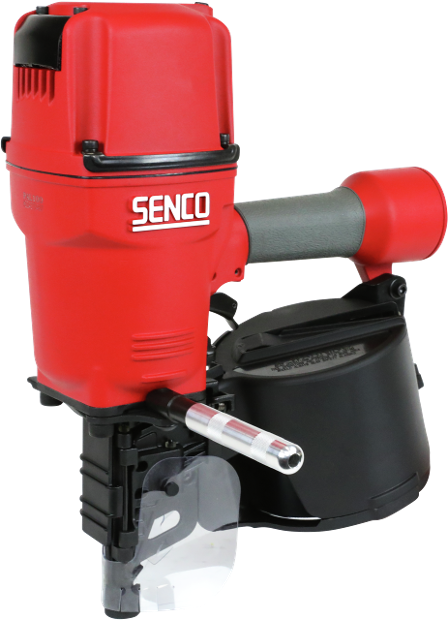

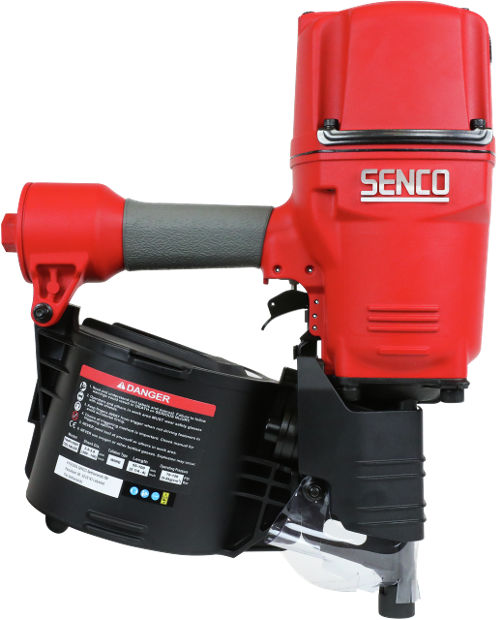

PAL100, pallet coilnailer, dual

Article number PAL100

tap image to zoom

Description

The Pal100 coilnailer has the muscle and durability to consistently and reliably drive up to 3,8x100mm nails all day long. The included T-handle helps comfortably maneuver and securely control the tool during operation.

Features & Benefits

  • Aluminium housing
  • Side steel wearplates
  • Comfort grip

Applications

Pallets and crates, Packaging, Subfloor, Framing, Sheathing

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Serie
PalletPro
Article number
PAL100
GTIN
8715274028163
Type
PAL100

Technical specifications

Collation angle
16 °
Wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Firing mode
Dual
Magazine capacity
300
Air inlet size
3/8" female
Air consumption at 60 shots/minute
323.0 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
89.3 Lpa
Sound power level
102.3 Lwa
Vibration level
5.35 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
55 - 100 mm
Smooth shank nail diameter
2,5 - 3,8 mm
Ring shank type
Ring shank
Ring shank nail length
55 - 75 mm
Ring shank nail diameter
2,5 - 2,5 mm
Screw shank type
Screw shank
Screw shank nail length
55 - 85 mm
Screw shank nail diameter
2,5 - 3,1 mm
Pitch min
8.0 mm
Pitch max
8.0 mm
Max outerdiamer coil
121 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
153 x 418 x 338 mm
Includes case
No

Logistical specifications

Net weight
5.24 kg
