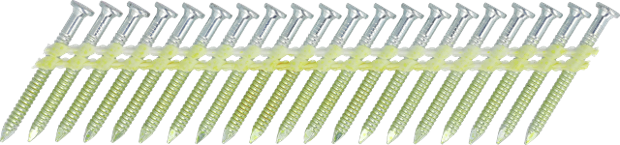

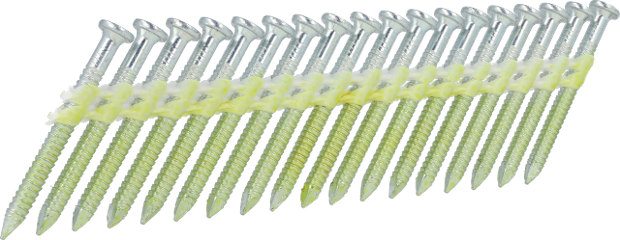

4,0mm ring metal connector, 12micron galvanized, Sencoted

Specifications

Identificaton

Article number

NN18AXBMR

GTIN

8715274260471

Technical specifications

Collation angle

34 °

Collation type

Plastic collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Zinc plated 12 micron

Coating

Sencoted

Application environment

Half indoor

Type of nail

Metal connector stripnails

Nail head type

Full round head

Nail shank type

Ring shank

Point type

Diamond

Pointangle

36 °

Nail diameter

4.0 mm

Amount fasteners on strip/coil

30 - 30

Nail length

40.0 mm

CE Specifications

CE fastener type

Round cross-section ring shank nail

DOP No

NN18AXBMR

Protection level in micron

12

Service class

2

Coating type

Coating type 3

Head cross sectional area

50.0 mm

Threaded/profiled length

33.0 mm

Characteristic yield moment

6850.0 Nmm

Characteristic tensile strength

668.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

6.99 N/mm²

Non-technical specifications

Package quantity

1000

Logistical specifications

Net weight

4.79 kg
