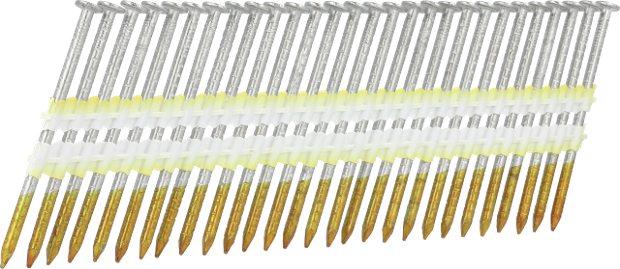

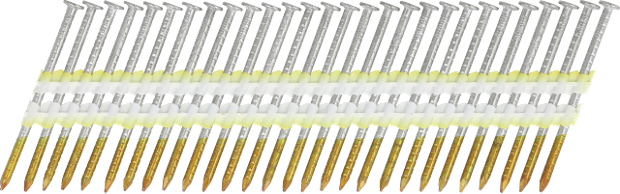

2,87mm barbed stripnail, HDG, Sencoted

Specifications

Identificaton

Article number

GB57ASBSR

GTIN

8715274037233

Technical specifications

Collation angle

21 °

Collation type

Plastic collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Hot-Dipped galvanised 3

Coating

Sencoted

Application environment

Outdoor

Type of nail

FRH stripnails

Nail head type

Full round head

Nail shank type

Barbed shank

Point type

Diamond

Pointangle

40 °

Nail diameter

2.87 mm

Amount fasteners on strip/coil

28 - 28

Nail length

75.0 mm

CE Specifications

Characteristic head pull through parameter

20.3 N/mm²

CE fastener type

Round cross-section ring shank nail

DOP No

GB57ASBSR

Protection level in micron

55

Service class

3

Coating type

Coating type 3

Coating length

55.5 mm

Head cross sectional area

36.0 mm

Threaded/profiled length

55.0 mm

Characteristic yield moment

3192.0 Nmm

Characteristic tensile strength

695.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

6.71 N/mm²

Non-technical specifications

Package quantity

2000

Logistical specifications

Net weight

8.44 kg
