Drywall to heavy steel screw PH2 weatherex 3,5x30mm

Article number 35Q30MW

tap image to zoom

Description

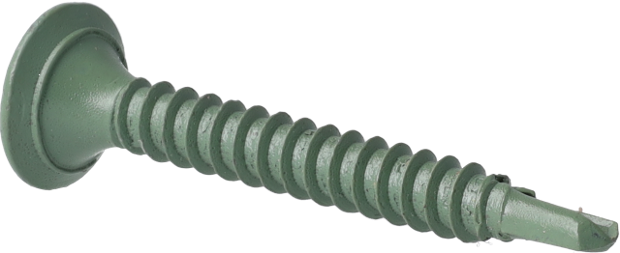

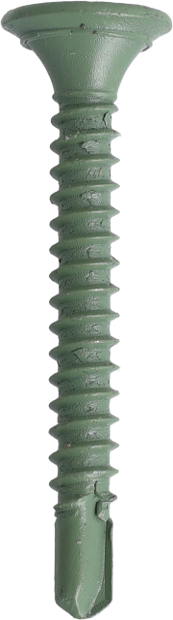

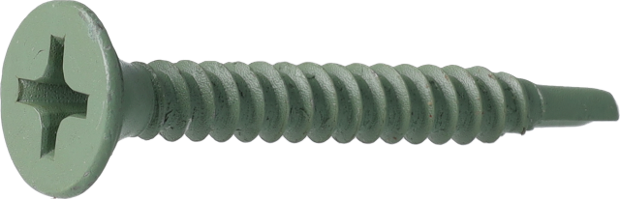

3,5mm drywall to heavy steel screw, weatherex II

Applications

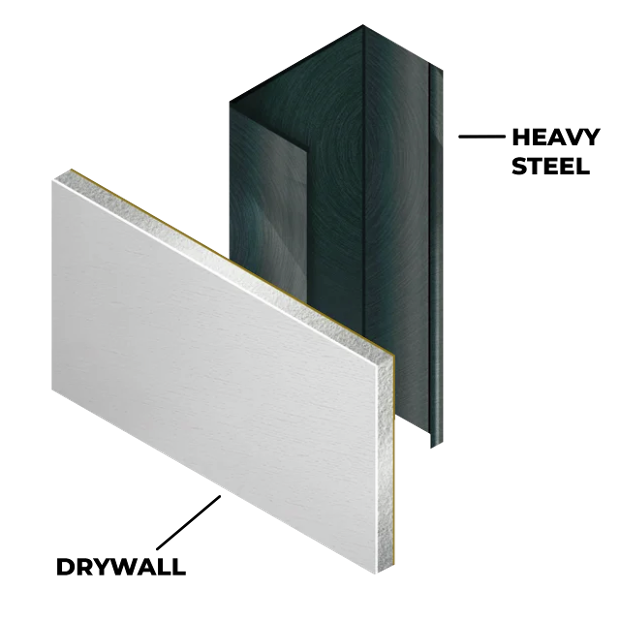

Drywall to heavy steel

Specifications

Identificaton

Article number
35Q30MW
GTIN
8718035000620

Technical specifications

Collation type

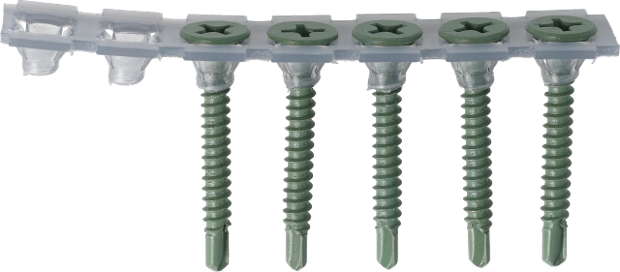

Plastic collated
Wire material
Carbon steel standard tensile
Rotations per minute
2300, 2500, 3000, 3300 RPM

Fastener specifications

Finish
Weatherex II
Application environment
Outdoor
Point type
Self drilling
Pointangle
110 °
Screw head type
Bugle head
Screw recess
Philips 2
Screw thread type
Fine
Amount fasteners on strip/coil
50 - 50
Screw length
30.0 mm
Screw diameter
3.5 mm

CE Specifications

DOP No
35Q30MW
Material notification on CE label
Non-alloy steel
Service class
3
Inner threaded diameter
2.65 mm
Threaded/profiled length
23.2 mm
Harmonized standard
EN 14566:2008+A1:2009

Non-technical specifications

Package quantity
1000

Logistical specifications

Net weight
2.1 kg
