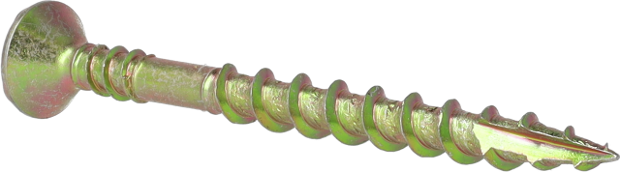

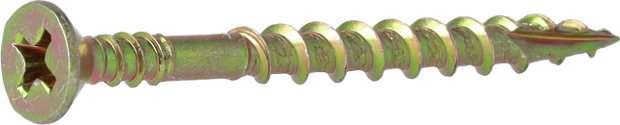

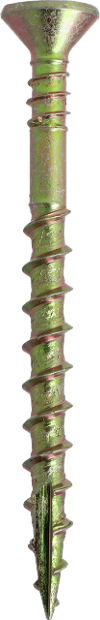

Wood to wood screw 4,2x45mm

Specifications

Identificaton

Article number

42KS45MY

GTIN

8715274022611

Technical specifications

Collation type

Plastic collated

Wire material

Carbon steel standard tensile

Rotations per minute

2500, 3000, 3300 RPM

Fastener specifications

Finish

Yellow zinc

Application environment

Indoor

Point type

Type 17 cut point

Pointangle

23 °

Screw head type

Flat

Screw recess

Philips 2

Screw thread type

Coarse

Amount fasteners on strip/coil

50 - 50

Screw length

45.0 mm

Screw diameter

4.2 mm

CE Specifications

DOP No

VS-CPR-201305-S034

Material notification on CE label

Non-alloy steel

Protection level in micron

3

Service class

1

Inner threaded diameter

3.05 mm

Threaded/profiled length

42.2 mm

Characteristic yield moment

3283.0 Nmm

Characteristic head pull through parameter

16.0 N/mm²

Characteristic tensile strength

4729.0 N/mm²

Torsional ratio

≥1,5

Characteristic torsional resistance

1.28 Nm

Characteristic torsional strength

3.4 Nm

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

12.0 N/mm²

Non-technical specifications

Package quantity

1000
