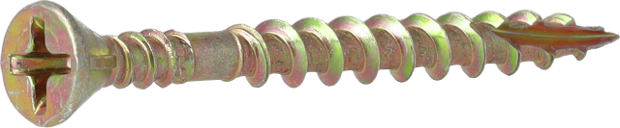

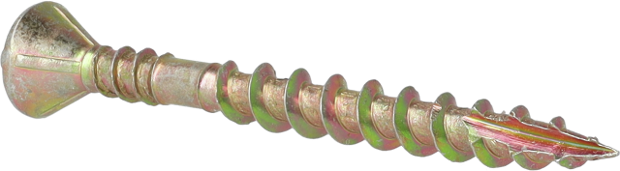

Flooring wood to wood screw 4,2x50mm

Specifications

Identificaton

Article number

42R50MY

GTIN

8715274011035

Technical specifications

Collation type

Plastic collated

Wire material

Carbon steel standard tensile

Rotations per minute

2300, 2500, 3000, 3300 RPM

Fastener specifications

Finish

Yellow zinc

Application environment

Indoor

Point type

Type 17 cut point

Pointangle

23 °

Screw head type

Small with 4 nibs

Screw recess

Philips 2

Screw thread type

2/3 coarse

Amount fasteners on strip/coil

50 - 50

Screw length

50.0 mm

Screw diameter

4.2 mm

CE Specifications

Characteristic head pull through parameter

16.0 N/mm²

DOP No

42R50MY

Material notification on CE label

Non-alloy steel

Protection level in micron

3

Service class

1

Inner threaded diameter

2.63 mm

Threaded/profiled length

33.0 mm

Characteristic yield moment

3283.0 Nmm

Torsional ratio

≥ 1,5

Characteristic torsional resistance

1.47 Nm

Characteristic torsional strength

3.47 Nm

Characteristic tensile capacity

4700.0 N

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

12.0 N/mm²

Non-technical specifications

Package quantity

1000

Logistical specifications

Net weight

2.94 kg
