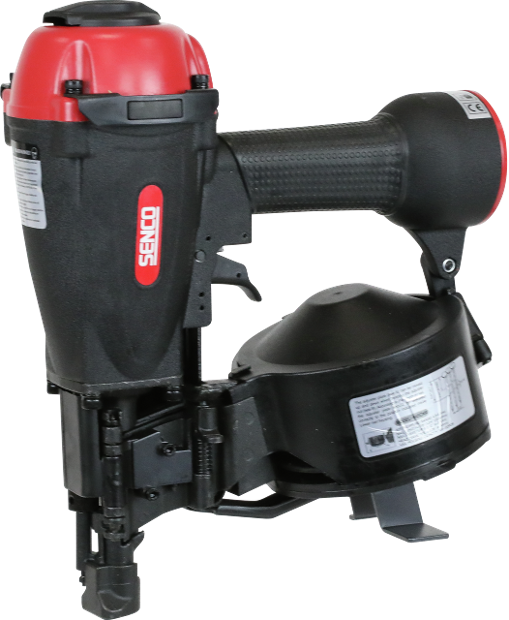

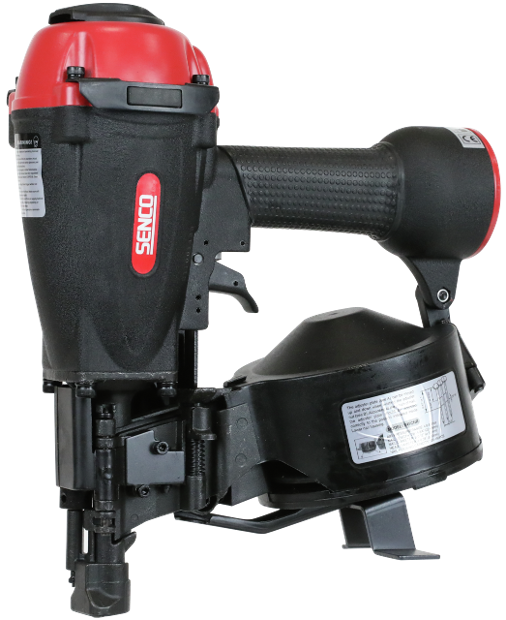

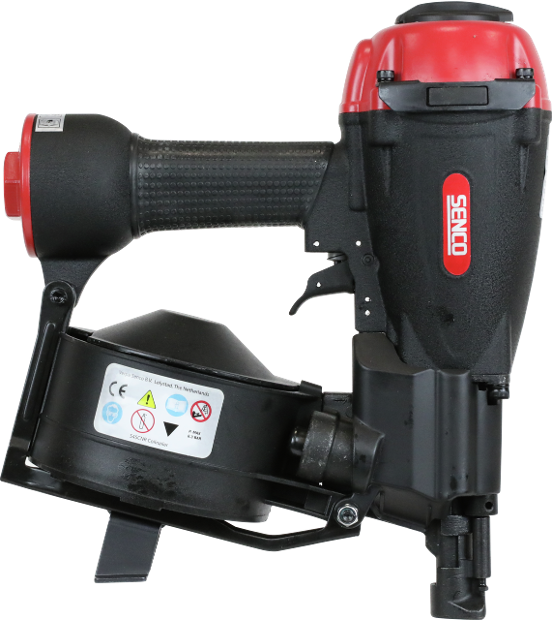

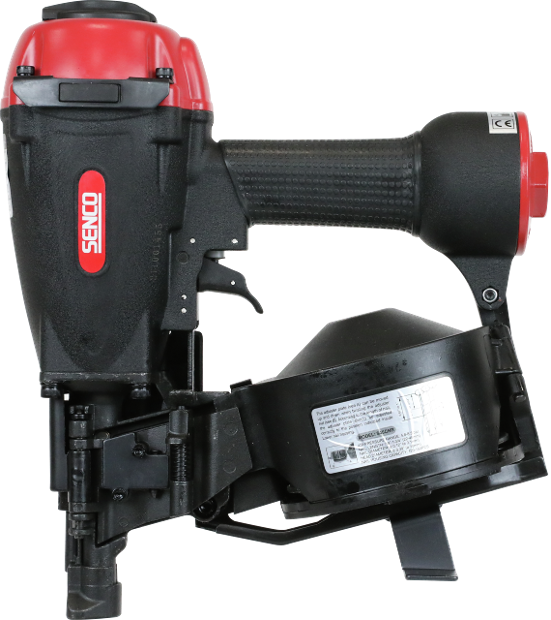

S45CNR Coilnailer

tap image to zoom

Description

The S45CNR roofing coilnailer will drive nails ranging in length between 22 and 45mm into asphalt and fiberglass shingles and waterproof tar paper. This pneumatic coilnailer is part of the SemiPro range and is designed for light-duty, semi-professional and DIY applications. SemiPro tools feature restrictive trigger action for maximum safety and are covered by SENCO's 1-year warranty.

Request information Request information

Specifications

Identificaton

Serie
SemiPro
Article number
1VS2004N
GTIN
8715274184517
Type
S45CNR

Technical specifications

Collation angle
16 °
Wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Firing mode
Restrictive
Magazine capacity
120
Shots / second
1
Air inlet size
1/4" female
Air consumption at 60 shots/minute
68.0 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
84.0 Lpa
Sound power level
97.0 Lwa
Vibration level
8.22 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
22 - 45 mm
Smooth shank nail diameter
3,1 - 3,1 mm
Pitch min
8.4 mm
Pitch max
8.4 mm
Max outerdiamer coil
100 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
110 x 300 x 310 mm
Includes case
Yes

Logistical specifications

Net weight
2.75 kg
