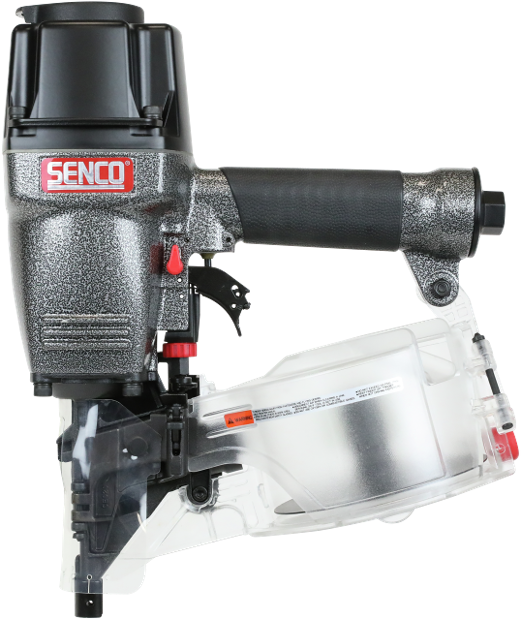

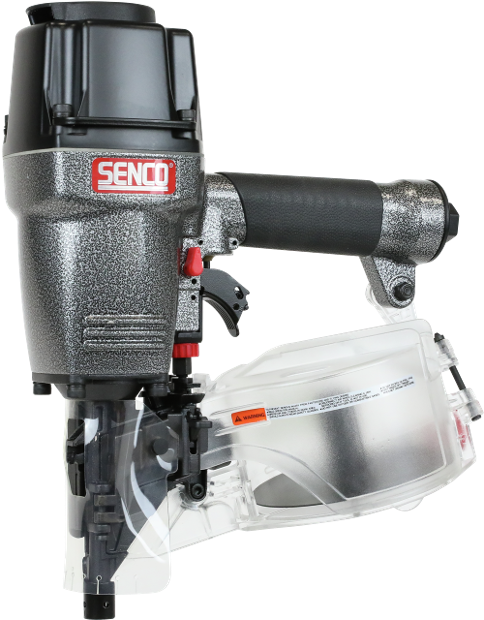

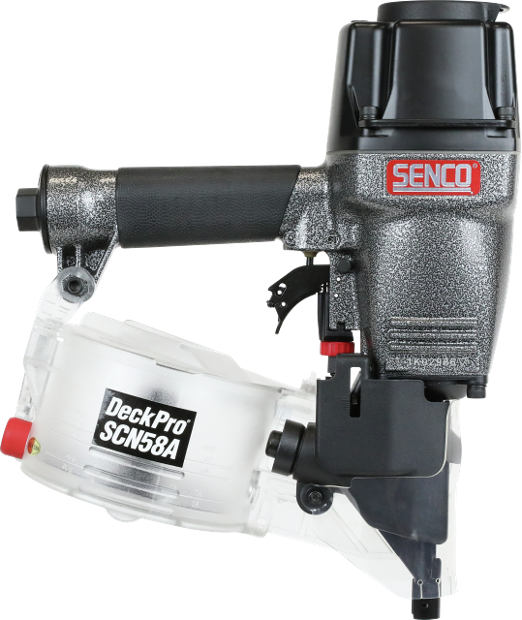

SCN58A, coilnailer, dual

Article number 2S9011N

tap image to zoom

Description

The SCN58A coilnailer drives nails from 25mm up to 65mm in diameters 2,3mm to 2,87mm, this tool drives both wire and plastic collated nails without any adjustment. Robust body and lightweight design at 2,6kg makes this a versatile tool with comfort and control.

Features & Benefits

  • Aluminium housing
  • Comfort grip
  • Tool-free depth-of-drive
  • 360° Adjustable Exhaust

Applications

Pallets and crates, Fencing, Siding

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Serie
Pro
Article number
2S9011N
GTIN
7414743091820
Type
SCN58A

Technical specifications

Collation angle
16 °
Wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Plastic collated 16mm
Firing mode
Selectable
Magazine capacity
300
Air inlet size
3/8" female
Air consumption at 60 shots/minute
113.0 l/m
Operating pressure
4.8 - 8.3 bar

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
32 - 65 mm
Smooth shank nail diameter
2,1 - 2,87 mm
Ring shank type
Ring shank
Ring shank nail length
32 - 60 mm
Ring shank nail diameter
2,1 - 2,87 mm
Screw shank type
Screw shank
Screw shank nail length
50 - 65 mm
Screw shank nail diameter
2,5 - 2,5 mm
Pitch min
7.8 mm
Pitch max
7.8 mm
Max outerdiamer coil
122 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
89 x 300 x 310 mm

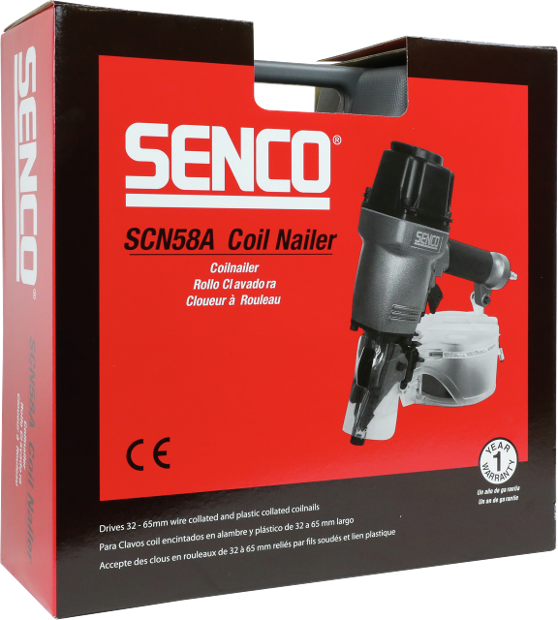

Includes case
Yes

Logistical specifications

Net weight
2.6 kg
