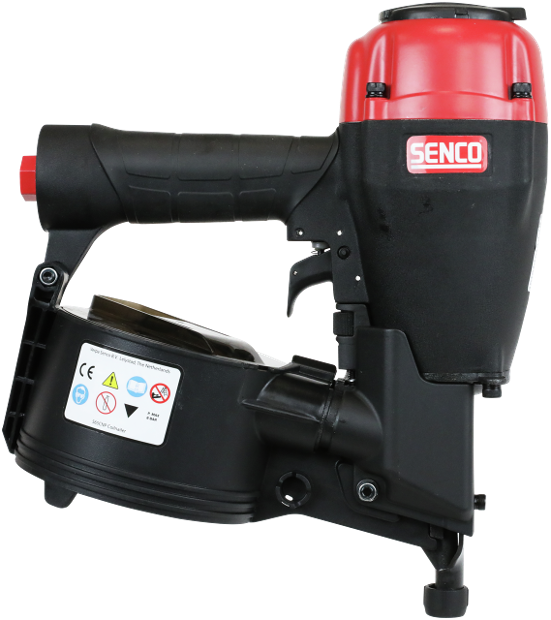

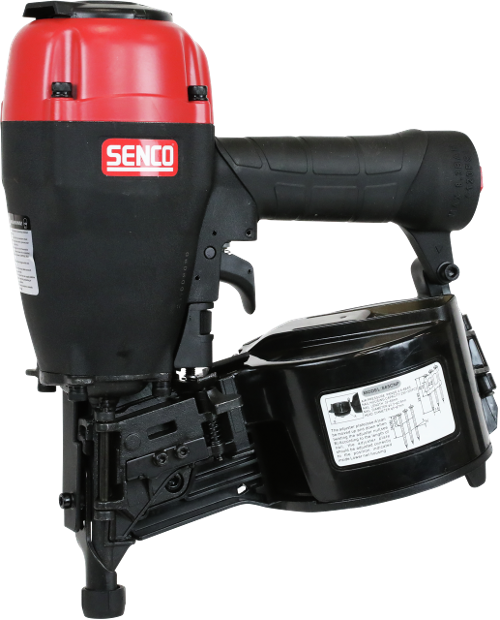

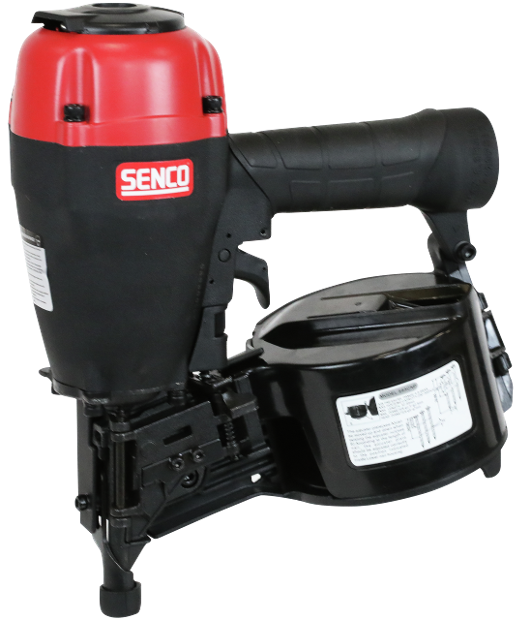

S65CNP, coilnailer, restrictive

tap image to zoom

Description

The S65CNP is a heavy duty, coil fed, pneumatic nailer using compressed air as a power source. This coilnailer is designed to drive nails ranging in length from 32 to 65mm and in diameter from 2,3 to 2,9mm. This SemiPro serie nailer is widely used for connection of frame and connection of frame and felt. The tool has a magnesium alloy body and the cylinder cap is of light material and provides high specific strength and rigidity.

Request information Request information

Specifications

Identificaton

Serie
SemiPro
Article number
8G2001N
GTIN
8715274168616
Type
S65CNP

Technical specifications

Collation angle
16 °
Wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Alternative collation type
Plastic collated 16mm
Firing mode
Restrictive
Magazine capacity
275
Air inlet size
1/4" female
Air consumption at 60 shots/minute
220.0 l/m
Operating pressure
4.9 - 8.3 bar
Sound pressure level
91.0 Lpa
Sound power level
104.0 Lwa
Vibration level
1.5 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
32 - 65 mm
Smooth shank nail diameter
2.3 - 2.87 mm
Pitch min
8.0 mm
Pitch max
8.0 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
300 x 304 x 128 mm
Includes case
Yes

Logistical specifications

Net weight
2.49 kg
