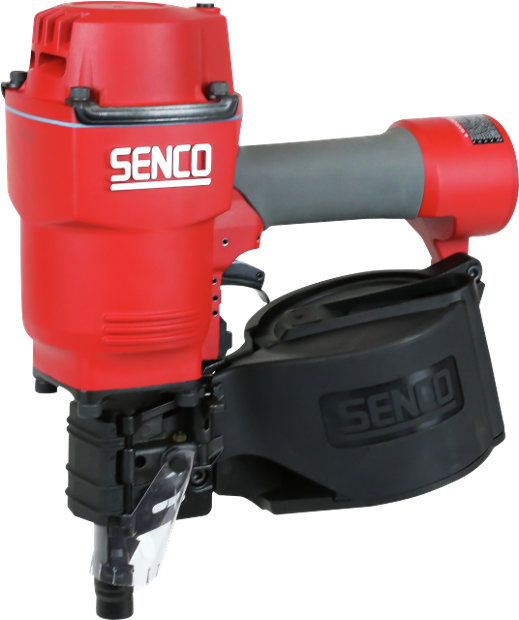

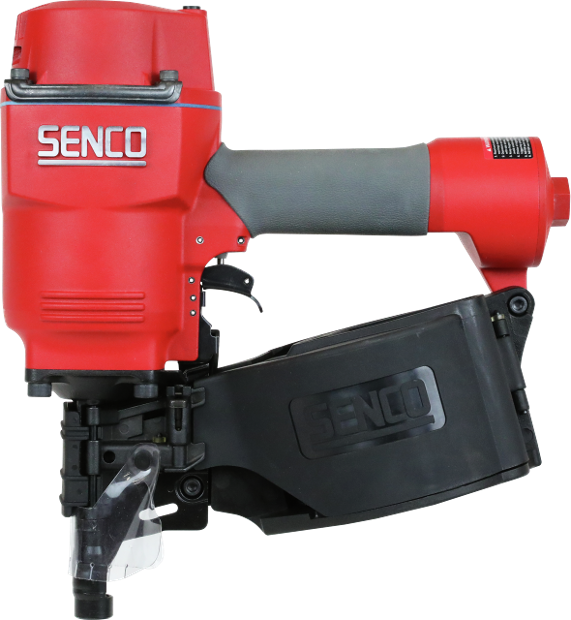

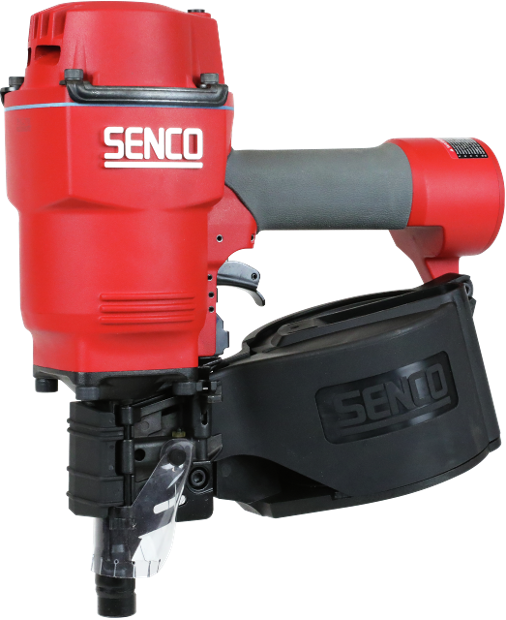

PAL70, pallet coilnailer, dual

Article number PAL70

tap image to zoom

Description

The Pal70 coilnailer is well balanced and powerful. It is designed with even the toughest of applications in mind, such as fencing and pallets. The nailer drives smooth, ring and screw shank coilnails ranging from 45 to 70mm in length and 2,3 to 2,9mm in diameter. With its magazine capacity of 300 nails (of the minimum diameter), you can be as productive as you want.

Features & Benefits

  • Aluminium housing
  • Side steel wearplates
  • Comfort grip

Applications

Pallets and crates, Packaging, Subfloor, Framing, Sheathing

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Serie
PalletPro
Article number
PAL70
GTIN
8715274017525
Type
PAL70

Technical specifications

Collation angle
16 °
Wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Firing mode
Dual
Magazine capacity
300
Shots / second
3
Air inlet size
3/8" female
Air consumption at 60 shots/minute
136.0 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
95.0 Lpa
Sound power level
107.0 Lwa
Vibration level
3.8 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
45 - 70 mm
Smooth shank nail diameter
2,3 - 2,87 mm
Ring shank type
Ring shank
Ring shank nail length
45 - 65 mm
Ring shank nail diameter
2,3 - 2,5 mm
Screw shank type
Screw shank
Screw shank nail length
45 - 65 mm
Screw shank nail diameter
2,3 - 2,87 mm
Pitch min
8.0 mm
Pitch max
8.0 mm
Max outerdiamer coil
121 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
129 x 339 x 319 mm
Includes case
No

Logistical specifications

Net weight
3.62 kg
