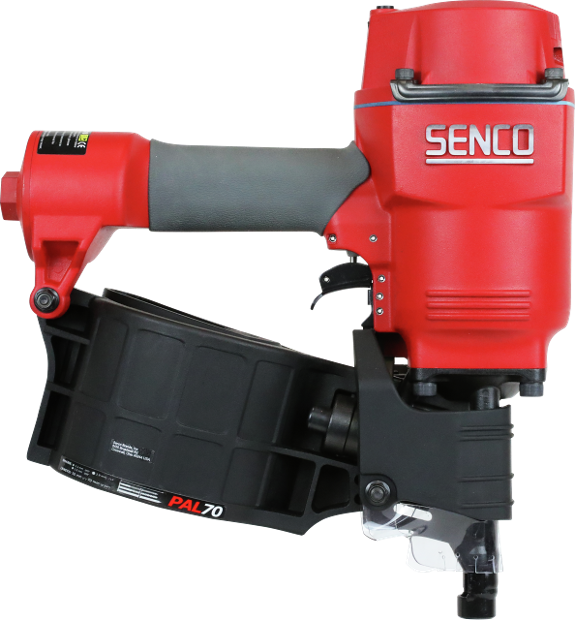

PAL70 Duplex, pallet coilnailer, dual

Article number XL3035

tap image to zoom

Description

The Pal70 coilnailer is well balanced and powerful.Designed with even the toughest of applications in mind. Drives smooth, ring and screw shank coil nails.

Features & Benefits

  • Aluminium housing
  • Side steel wearplates
  • Comfort grip

Applications

Pallets and crates, Packaging, Subfloor, Framing, Sheathing

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Serie
PalletPro
Article number
XL3035
GTIN
8715274054469
Type
PAL70

Technical specifications

Collation angle
16 °
Wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Firing mode
Dual
Magazine capacity
300
Shots / second
3
Air inlet size
3/8" female
Air consumption at 60 shots/minute
136.0 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
95.0 Lpa
Sound power level
107.0 Lwa
Vibration level
3.8 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
45 - 70 mm
Smooth shank nail diameter
3,3 - 3,3 mm
Pitch min
8.0 mm
Pitch max
8.0 mm
Max outerdiamer coil
121 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
129 x 339 x 319 mm
Includes case
No

Logistical specifications

Net weight
3.62 kg
