SLP20XP GLN, glazing brad nailer 1,2mm (AX) 4mm

tap image to zoom

Description

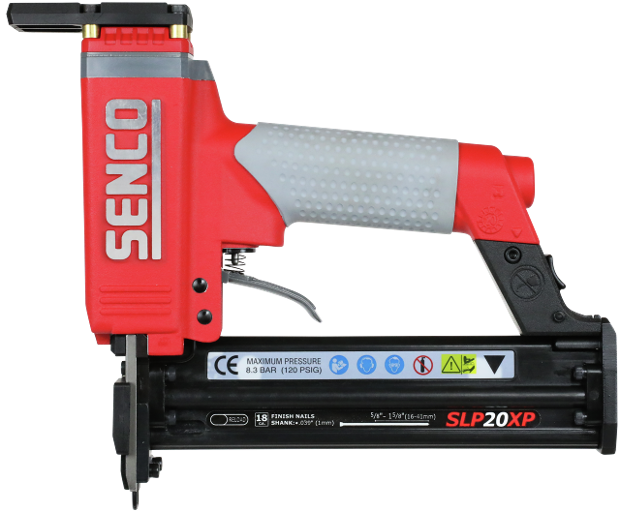

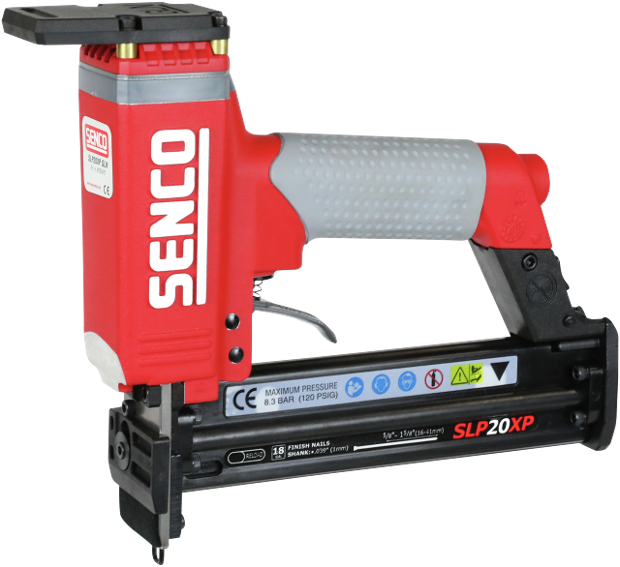

The SLP20XP GLN is an air powered glazing brad nailer for fastening indoor glass retaining strips. The 1,2mm (AX) nail is curved and drives covered in the nutch, ranging in length from 25mm to 38mm. Place your nails with an interspace of 30cm for the best results. Drive the last one on the strip at max. 8 till 10.5 cm to the end.

  • Comfort grip
  • Reload indicator
  • Oil-free

Applications

Doors and windows

Request information Request information

Specifications

Identificaton

Serie
XtremePro
Article number
WCE0472
GTIN
8715274044910
Type
SLP20XP-GLN

Technical specifications

Collation angle
0 °
Oil free
Yes
Operating temperature
-18 - 49 °C
Collation type
Glue collated
Firing mode
Restrictive
Magazine capacity
110
Air inlet size
1/4" female
Air consumption at 60 shots/minute
54.0 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
79.0 Lpa
Sound power level
88.0 Lwa
Vibration level
under declaraton limit m/s2
Gauge
18

Fastener specifications

Type of nail
Brads
Smooth shank type
Smooth shank
Smooth shank nail length
25 - 38 mm
Smooth shank nail diameter
1.2 - 1.2 mm

Non-technical specifications

Warranty
5 years
Dimensions (DxWxH)
50 x 275 x 225 mm

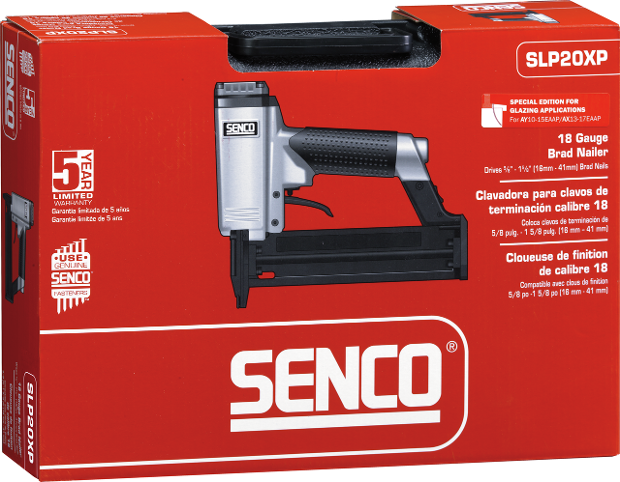

Includes case
Yes

Logistical specifications

Net weight
1.17 kg
