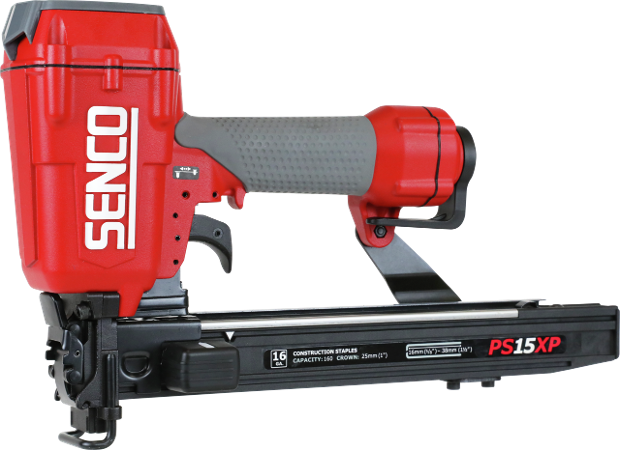

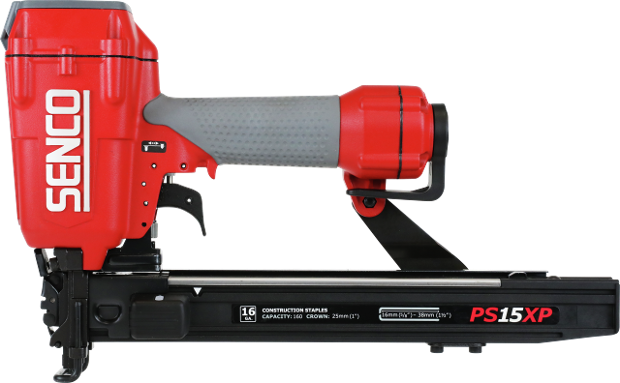

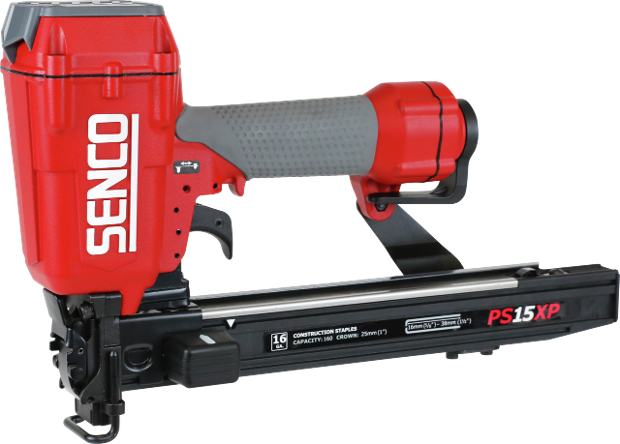

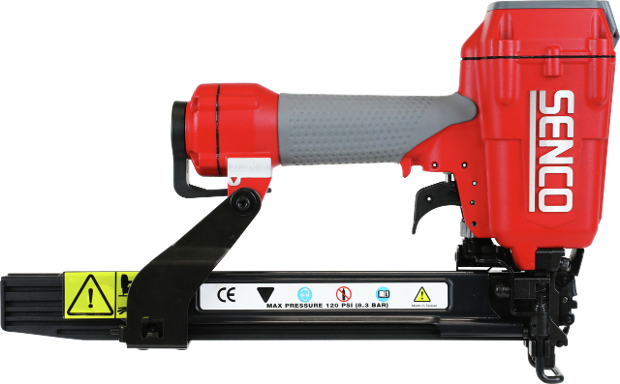

PS15XP, wc stapler

tap image to zoom

Description

The PS15XP is a pneumatic wide crown stapler that drives 1,6mm crown P-staples ranging in length from 16 to 38mm. This heavy wire stapler is part of the XtremePro Serie and is developed for extreme performance and longevity. Its drive track design allows for superior control of the fastener and unrivaled driveability.

Read more Read less

Request information

Specifications

Identificaton

Serie: XtremePro
Article number: 9T2001N
GTIN: 8715274236148
Type: PS15XP

Technical specifications

Collation angle: 0 °
Oil free: No
Operating temperature: -18 - 49 °C
Collation type: Glue collated
Firing mode: Dual
Magazine capacity: 160
Shots / second: 10
Air inlet size: 3/8" female
Air consumption at 60 shots/minute: 90.0 l/m
Operating pressure: 4.8 - 8.3 bar
Gauge: 16

Fastener specifications

Staple type: Heavy wire staple
Staple length: 16 - 38 mm
Staple serie: P staple

Non-technical specifications

Warranty: 5 years
Dimensions (DxWxH): 105 x 387 x 229 mm
Includes case: Yes

Logistical specifications

Net weight: 2.3 kg

Downloads

Manual SENCO PS15XP, PS20XP PDF 3 Mb
Manual SENCO Staplers PDF 31 Mb
Part chart SENCO PS15XP PDF 922 Kb
9T2001N_en_CommercialProductSheet_1.2_1752011176160 PDF 2 Mb
