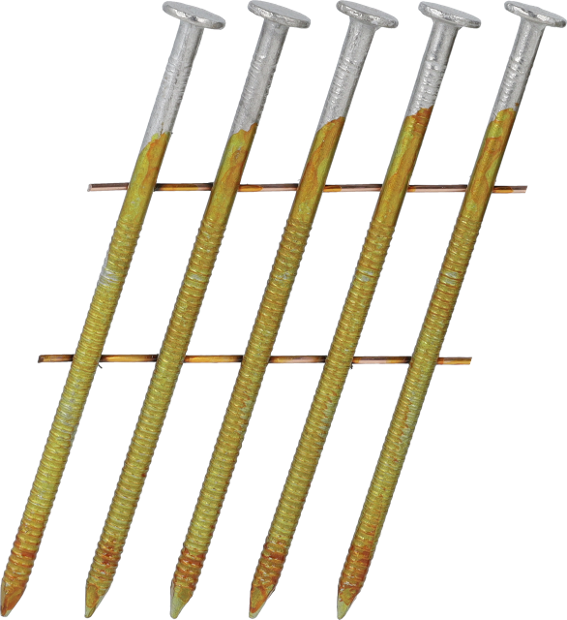

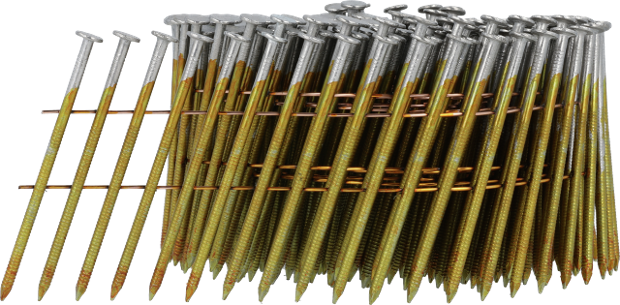

Senco cn flat hdg dp ring senc. 2,5x65mm

Specifications

Identificaton

Article number

BL25ASBF

GTIN

8715274027371

Technical specifications

Collation angle

16 °

Wounding type

High load

Collation type

Wire collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Hot-Dipped galvanised 3

Coating

Sencoted

Application environment

Outdoor

Type of nail

Coilnails

Nail shank type

Ring shank

Point type

Diamond

Pointangle

36 °

Pitch min

8.4 mm

Pitch max

8.4 mm

Max outerdiamer coil

122 mm

Nail diameter

2.5 mm

Amount fasteners on strip/coil

275 - 275

Nail length

65.0 mm

CE Specifications

Characteristic head pull through parameter

25.5 N/mm²

CE fastener type

Round cross-section ring shank nail

DOP No

BL25ASBF

Protection level in micron

55

Service class

3

Coating type

Coating type 3

Head cross sectional area

27.0 mm

Threaded/profiled length

49.0 mm

Characteristic yield moment

1620.0 Nmm

Characteristic tensile strength

700.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

9.1 N/mm²

Non-technical specifications

Package quantity

7425

Logistical specifications

Net weight

19.9 kg
