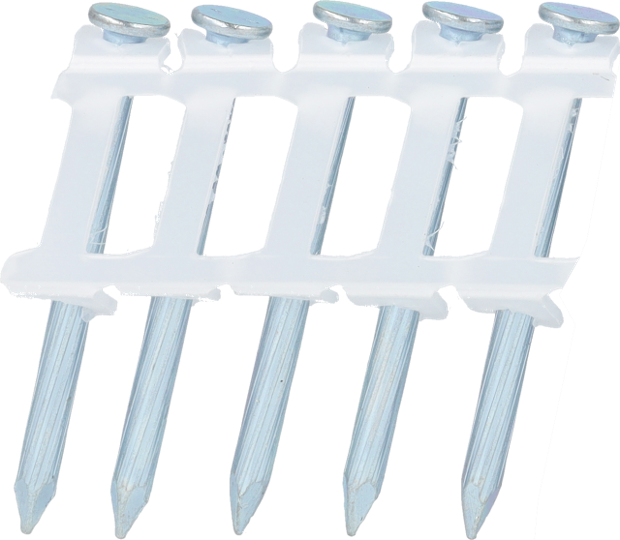

Senco cn flat galv heat bal ang 2,5x38mm

Specifications

Identificaton

Article number

BX17AIAC

GTIN

8715274173498

Technical specifications

Collation angle

16 °

Wounding type

Flat

Collation type

Plastic collated 16mm

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Regular galvanised (heat treated)

Coating

Plain

Application environment

Indoor

Type of nail

Coilnails

Nail shank type

Ballistic shank

Point type

Diamond

Pointangle

36 °

Pitch min

8.5 mm

Pitch max

8.5 mm

Max outerdiamer coil

120 mm

Nail diameter

2.5 mm

Nail length

38.0 mm

CE Specifications

Characteristic head pull through parameter

47.9 N/mm²

DOP No

BX17AIAC

Head cross sectional area

37.0 mm

Threaded/profiled length

28.5 mm

Characteristic yield moment

3193.0 Nmm

Characteristic tensile strength

695.0 N/mm²

Characteristic withdrawal parameter

3.4 N/mm²

Non-technical specifications

Package quantity

6000

Logistical specifications

Net weight

1.4 kg
