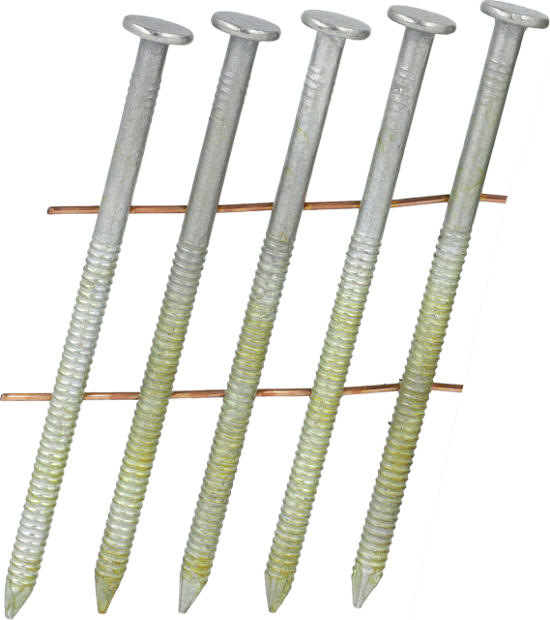

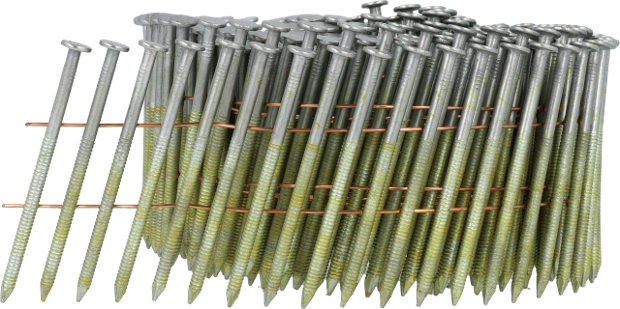

Senco cn flat hdg dp ring 2,87x60mm

Specifications

Identificaton

Article number

GL24ASBFR

GTIN

8715274292625

Technical specifications

Collation angle

16 °

Wounding type

Flat

Collation type

Wire collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Hot-Dipped galvanised 3

Coating

Sencoted

Application environment

Outdoor

Type of nail

Coilnails

Nail shank type

Ring shank

Point type

Diamond

Pointangle

40 °

Pitch min

8.4 mm

Pitch max

8.4 mm

Max outerdiamer coil

122 mm

Nail diameter

2.87 mm

Nail length

60.0 mm

CE Specifications

Characteristic head pull through parameter

27.12 N/mm²

CE fastener type

Round cross-section ring shank nail

DOP No

GL24ASBFR

Protection level in micron

55

Service class

3

Coating type

Coating type 3

Head cross sectional area

36.0 mm

Threaded/profiled length

46.0 mm

Characteristic yield moment

3054.0 Nmm

Characteristic tensile strength

695.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

8.5 N/mm²

Non-technical specifications

Package quantity

2000
