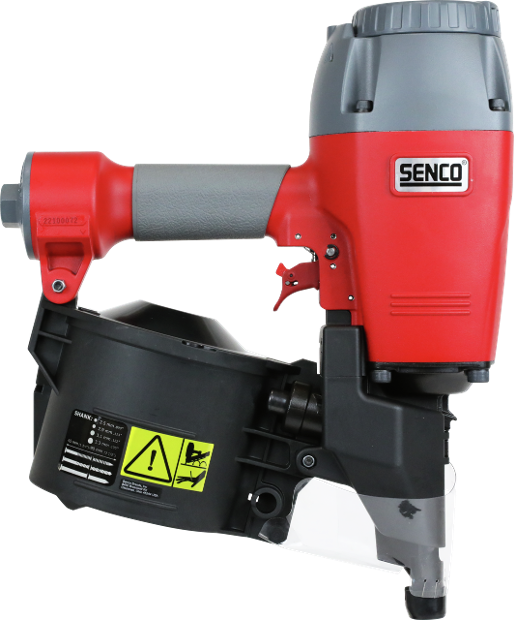

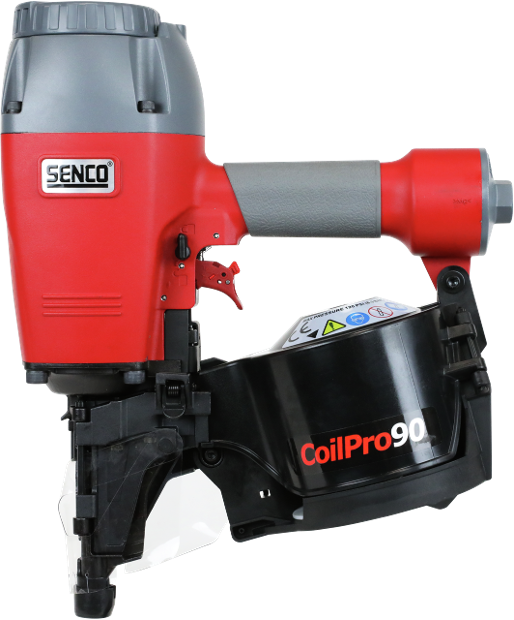

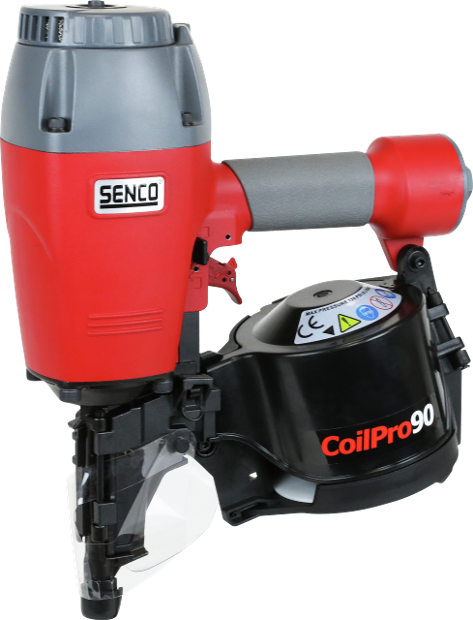

CoilPro90, coilnailer, dual

Article number 1VS2001N

tap image to zoom

Description

This pneumatic CoilPro90 coilnailer runs both wire and plastic collated nails ranging from 2,5 to 3,3mm in diameter and 45 to 90mm in length. This Pro Series coilnailer can span a wide range of applications from framing and siding to sub-flooring and decks.

Features & Benefits

  • Selectable actuation switch
  • Tool-free depth-of-drive

Applications

Roofing, Decking, Subfloor, Pallets and crates, Wood construction

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Serie
Pro
Article number
1VS2001N
GTIN
8715274180755
Type
CoilPro90

Technical specifications

Collation angle
16 °
Wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Alternative collation type
Plastic collated 16mm
Firing mode
Dual
Magazine capacity
300
Shots / second
3
Air inlet size
3/8" female
Air consumption at 60 shots/minute
157.0 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
98.0 Lpa
Sound power level
107.0 Lwa
Vibration level
7.13 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
45 - 90 mm
Smooth shank nail diameter
2,5 - 3,3 mm
Ring shank type
Ring shank
Ring shank nail length
45 - 90 mm
Ring shank nail diameter
2,5 - 2,5 mm
Screw shank type
Screw shank
Screw shank nail length
45 - 90 mm
Screw shank nail diameter
2,5 - 3,3 mm
Barbed shank type
Barbed shank
Barbed shank nail length
45 - 90 mm
Barbed shank nail diameter
2,5 - 3,3 mm
Pitch min
8.0 mm
Pitch max
8.0 mm
Max outerdiamer coil
121 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
128 x 305 x 373 mm
Includes case
No
