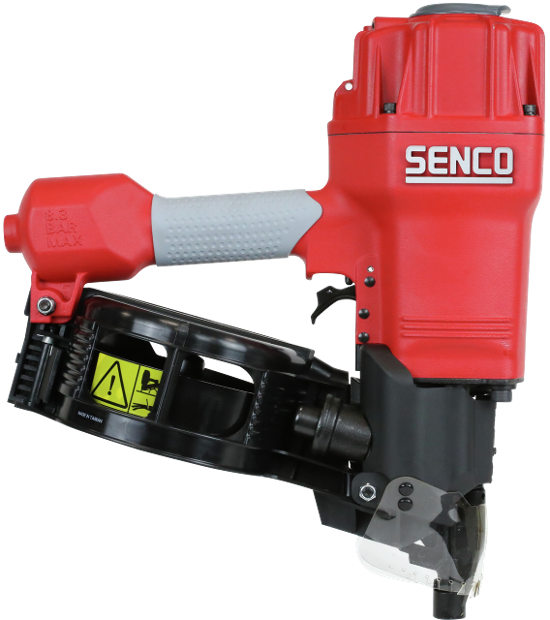

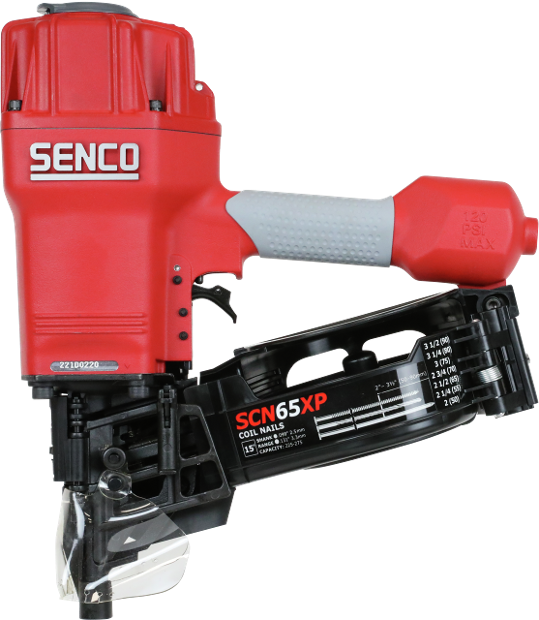

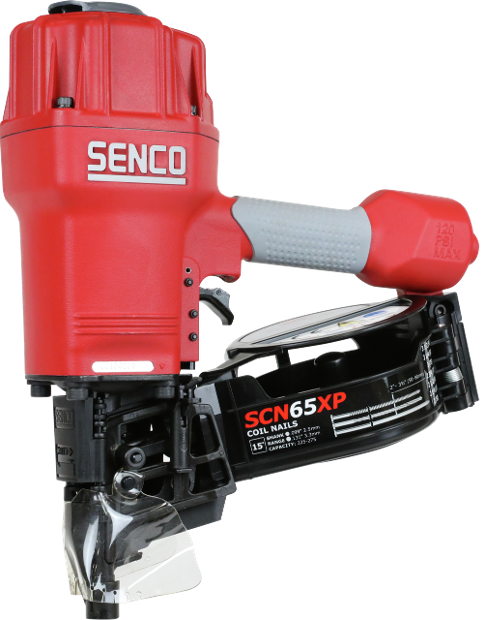

SCN65XP, coilnailer, dual
Article number 542001N
tap image to zoom
Description
The rugges-duty SCN65 coilnailer drives 50mm to 90mm coilnails. It is light enough for one-handed operation and is yet up to 25% more powerful - giving you superior performance. It has a high load capacity of 275 nails (depending upon nail type) for maximum productivity in a wide variety of applications.
Features & Benefits
- 360° Adjustable Exhaust
- Adjustable depth-of-drive with depth lock
Applications
Siding, Decking, Fencing, Subfloor, Wood shingles, Crates, Sheathing
Specifications
Identificaton
- Serie
- XtremePro
- Article number
- 542001N
- GTIN
- 741474302244
- Type
- SCN65XP
Technical specifications
- Collation angle
- 16 °
- Wounding type
- Flat
- Oil free
- No
- Operating temperature
- -18 - 49 °C
- Collation type
- Wire collated
- Firing mode
- Dual
- Magazine capacity
- 275
- Air inlet size
- 3/8" female
- Air consumption at 60 shots/minute
- 270.2 l/m
- Operating pressure
- 4.8 - 8.3 bar
- Sound pressure level
- 93.0 Lpa
- Sound power level
- 102.0 Lwa
- Vibration level
- 3.68 m/s2
Fastener specifications
- Type of nail
- Coilnails
- Smooth shank type
- Smooth shank
- Smooth shank nail length
- 50 - 90 mm
- Smooth shank nail diameter
- 2,87 - 3,3 mm
- Ring shank type
- Ring shank
- Ring shank nail length
- 50 - 75 mm
- Ring shank nail diameter
- 2,5 - 3,1 mm
- Screw shank type
- Screw shank
- Screw shank nail length
- 50 - 75 mm
- Screw shank nail diameter
- 2,5 - 3,1 mm
- Pitch min
- 8.0 mm
- Pitch max
- 8.0 mm
Non-technical specifications
- Warranty
- 5 years
- Dimensions (DxWxH)
- 137 x 327 x 359 mm
- Includes case
- No
Logistical specifications
- Net weight
- 3.6 kg
Related Fasteners
Downloads
- Manual SENCO Coilnailers PDF 21 Mb
- Part chart SENCO coilnailer SCN65XP PDF 1 Mb
- 542001N_en_CommercialProductSheet_1.2_1727379841192 PDF 2 Mb
